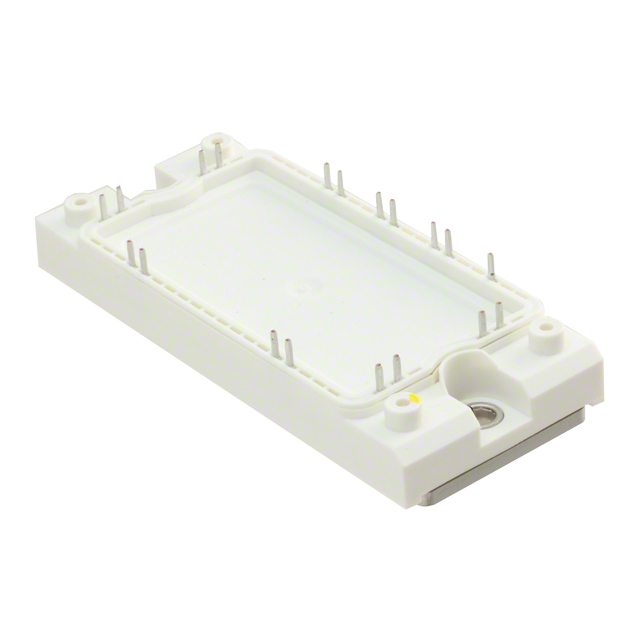

DDB6U134N16RRBOSA1

International Rectifier (Infineon Technologies)

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DDB6U134N16RRBOSA1
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IGBT MODULE 1600V 134A
Datasheets:	DDB6U134N16RRBOSA1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1261 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1261 pcs

Reference Price (In US Dollars)

1 pcs: $29.694

10 pcs: $28.162

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$29.694

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DDB6U134N16RRBOSA1

Part Number	DDB6U134N16RRBOSA1	Manufacturer	International Rectifier (Infineon Technologies)
Description	IGBT MODULE 1600V 134A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1261 pcs	Data sheet	DDB6U134N16RRBOSA1.pdf
Voltage - Collector Emitter Breakdown (Max)	1600V	Vce(on) (Max) @ Vge, Ic	2.75V @ 15V, 70A
Supplier Device Package	Module	Series	-
Power - Max	500W	Package / Case	Module
Other Names	DDB6U134N16RR DDB6U134N16RR-ND SP000101744	Operating Temperature	150°C (TJ)
NTC Thermistor	Yes	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Cies) @ Vce	5.1nF @ 25V	Input	Standard
IGBT Type	NPT	Detailed Description	IGBT Module NPT Single 1600V 70A 500W Chassis Mount Module
Current - Collector Cutoff (Max)	500µA	Current - Collector (Ic) (Max)	70A
Configuration	Single
