BSZ123N08NS3GATMA1

International Rectifier (Infineon Technologies)

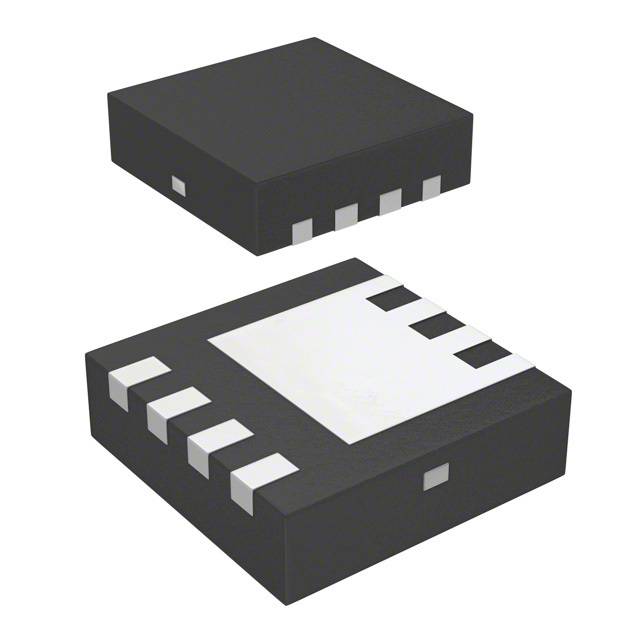

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BSZ123N08NS3GATMA1
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET N-CH 80V 40A TSDSON-8
Datasheets:	BSZ123N08NS3GATMA1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	178705 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 178705 pcs

Reference Price (In US Dollars)

5000 pcs: $0.201

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.201

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BSZ123N08NS3GATMA1

Part Number	BSZ123N08NS3GATMA1	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET N-CH 80V 40A TSDSON-8	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	178705 pcs	Data sheet	BSZ123N08NS3GATMA1.pdf
Vgs(th) (Max) @ Id	3.5V @ 33µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	PG-TSDSON-8
Series	OptiMOS™	Rds On (Max) @ Id, Vgs	12.3 mOhm @ 20A, 10V
Power Dissipation (Max)	2.1W (Ta), 66W (Tc)	Packaging	Tape & Reel (TR)
Package / Case	8-PowerVDFN	Other Names	BSZ123N08NS3 G BSZ123N08NS3G BSZ123N08NS3GATMA1TR BSZ123N08NS3GINTR BSZ123N08NS3GINTR-ND BSZ123N08NS3GXT SP000443632
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	1700pF @ 40V	Gate Charge (Qg) (Max) @ Vgs	25nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V	Drain to Source Voltage (Vdss)	80V
Detailed Description	N-Channel 80V 10A (Ta), 40A (Tc) 2.1W (Ta), 66W (Tc) Surface Mount PG-TSDSON-8	Current - Continuous Drain (Id) @ 25°C	10A (Ta), 40A (Tc)
