BSZ0909NDXTMA1

International Rectifier (Infineon Technologies)

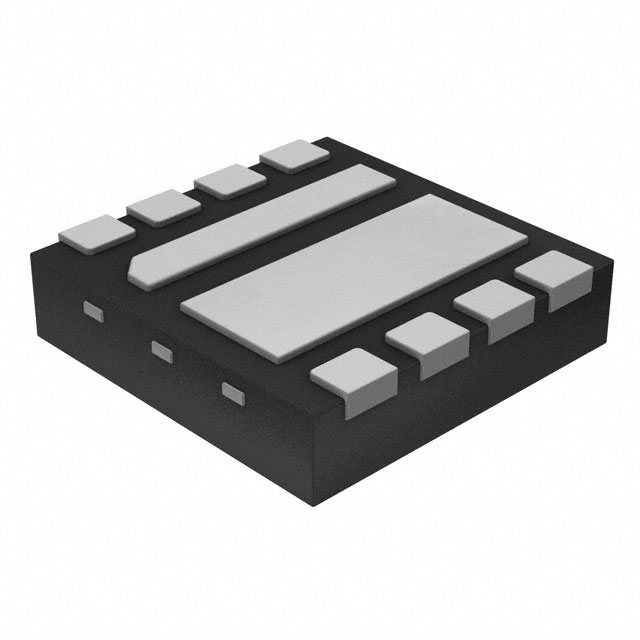

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BSZ0909NDXTMA1
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET 2 N-CH 30V 20A WISON-8
Datasheets:	BSZ0909NDXTMA1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	183611 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 183611 pcs

Reference Price (In US Dollars)

5000 pcs: $0.195

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.195

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BSZ0909NDXTMA1

Part Number	BSZ0909NDXTMA1	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET 2 N-CH 30V 20A WISON-8	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	183611 pcs	Data sheet	BSZ0909NDXTMA1.pdf
Vgs(th) (Max) @ Id	2V @ 250µA	Supplier Device Package	PG-WISON-8
Series	OptiMOS™	Rds On (Max) @ Id, Vgs	18 mOhm @ 9A, 10V
Power - Max	17W	Packaging	Tape & Reel (TR)
Package / Case	8-PowerVDFN	Other Names	BSZ0909NDXTMA1TR SP001637282
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	360pF @ 15V	Gate Charge (Qg) (Max) @ Vgs	2.6nC @ 4.5V
FET Type	2 N-Channel (Dual)	FET Feature	Logic Level Gate, 4.5V Drive
Drain to Source Voltage (Vdss)	30V	Detailed Description	Mosfet Array 2 N-Channel (Dual) 30V 20A (Tc) 17W Surface Mount PG-WISON-8
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
