BSB024N03LX G

International Rectifier (Infineon Technologies)

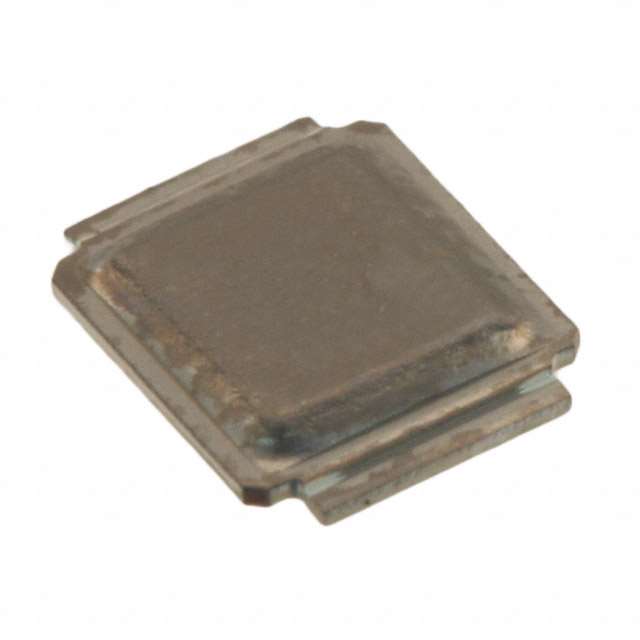

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BSB024N03LX G
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET N-CH 30V 145A 2WDSON
Datasheets:	BSB024N03LX G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3288 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3288 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BSB024N03LX G

Part Number	BSB024N03LX G	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET N-CH 30V 145A 2WDSON	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3288 pcs	Data sheet	BSB024N03LX G.pdf
Vgs(th) (Max) @ Id	2.2V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	MG-WDSON-2, CanPAK M™
Series	OptiMOS™	Rds On (Max) @ Id, Vgs	2.4 mOhm @ 30A, 10V
Power Dissipation (Max)	2.8W (Ta), 78W (Tc)	Packaging	Tape & Reel (TR)
Package / Case	3-WDSON	Other Names	BSB024N03LX G-ND BSB024N03LXG SP000597838
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	4900pF @ 15V	Gate Charge (Qg) (Max) @ Vgs	72nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	30V
Detailed Description	N-Channel 30V 27A (Ta), 145A (Tc) 2.8W (Ta), 78W (Tc) Surface Mount MG-WDSON-2, CanPAK M™	Current - Continuous Drain (Id) @ 25°C	27A (Ta), 145A (Tc)
