Infineon Technologies

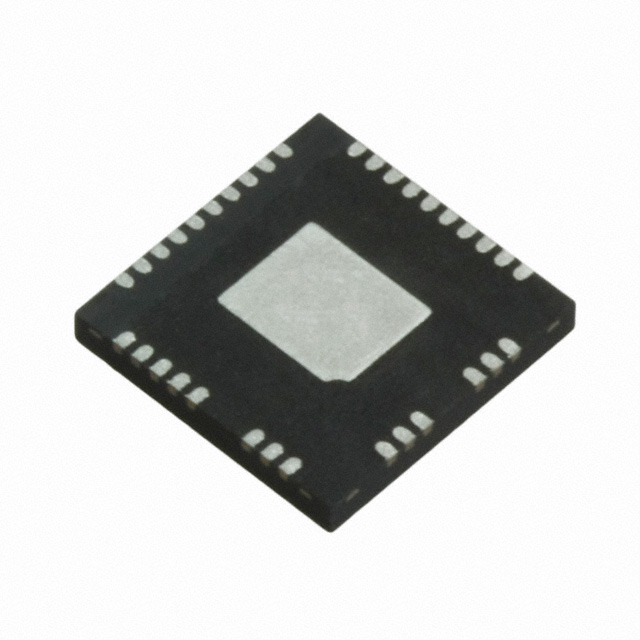

| Part Number | IRS2336DMTRPBF | Manufacturer | Infineon Technologies |
|---|---|---|---|
| Description | IC DRIVER BRIDGE 3-PHASE 48-MLPQ | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4900 pcs | Data sheet | IRS2336DMTRPBF.pdf |
| Voltage - Breakdown | 48-MLPQ, 34 Leads (7x7) | Shell Style | 10 V ~ 20 V |
| Series | - | RoHS Status | Tube |
| Rise / Fall Time (Typ) | 200mA, 350mA | Polarization | 48-VFQFN Exposed Pad, 34 Leads |
| Other Names | IRS2336DMPBF IRS2336DMPBF-ND SP001535008 |
Operating Temperature | -40°C ~ 150°C (TJ) |
| Number of Drivers | Half-Bridge | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | Manufacturer Part Number | IRS2336DMTRPBF |
| Logic Voltage - VIL, VIH | IGBT, N-Channel MOSFET | Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 125ns, 50ns | Gate Type | 6 |
| Expanded Description | Half-Bridge Gate Driver IC Inverting 48-MLPQ, 34 Leads (7x7) | Description | IC DRIVER BRIDGE 3-PHASE 48-MLPQ |
| Current - Peak Output (Source, Sink) | 0.8V, 2.5V | Current - Output (Max) | 600V |
| Channels per Circuit | 3-Phase |
