HomeProductsCapacitorsAluminum Electrolytic Capacitors688LBA080M2EG

688LBA080M2EG

Illinois CapacitorIllinois Capacitor

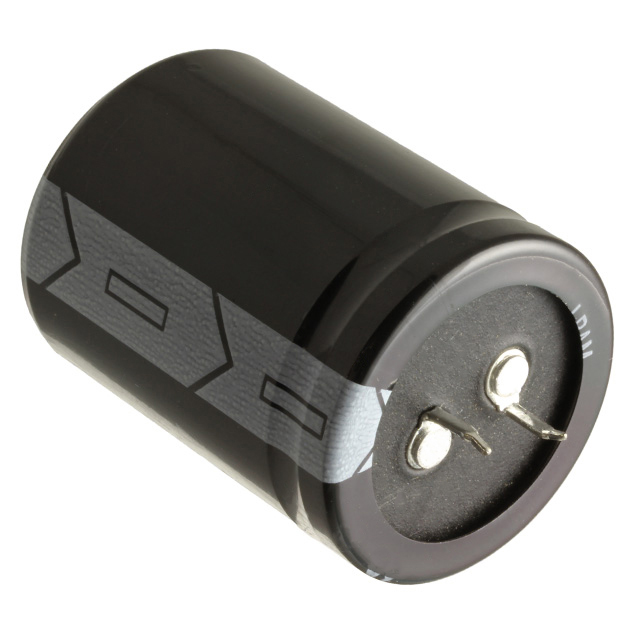

688LBA080M2EG Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 688LBA080M2EG
Manufacturer/Brand: Illinois Capacitor
Product description CAP ALUM 6800UF 20% 80V SNAP
Datasheets: 688LBA080M2EG.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 25856 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 25856 pcs
Reference Price (In US Dollars)
1200 pcs
$1.154
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$1.154

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 688LBA080M2EG

Part Number 688LBA080M2EG Manufacturer Illinois Capacitor
Description CAP ALUM 6800UF 20% 80V SNAP Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 25856 pcs Data sheet 688LBA080M2EG.pdf
Voltage - Rated 80V Tolerance ±20%
Surface Mount Land Size - Size / Dimension 1.378" Dia (35.00mm)
Series LBA Ripple Current @ Low Frequency 4.8A @ 120Hz
Ripple Current @ High Frequency 6A @ 10kHz Ratings -
Polarization Polar Packaging Bulk
Package / Case Radial, Can - Snap-In Operating Temperature -40°C ~ 85°C
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 22 Weeks Lifetime @ Temp. 2000 Hrs @ 85°C
Lead Spacing 0.394" (10.00mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height - Seated (Max) 1.850" (47.00mm) ESR (Equivalent Series Resistance) 60.95 mOhm @ 120Hz
Detailed Description 6800µF 80V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 60.95 mOhm @ 120Hz 2000 Hrs @ 85°C Capacitance 6800µF
Applications General Purpose
