334LC3700KL505HM6

Illinois CapacitorIllinois Capacitor

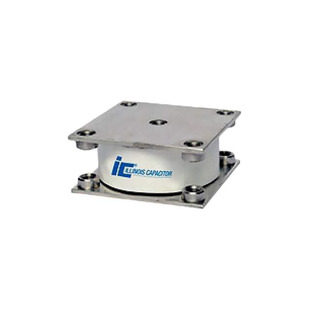

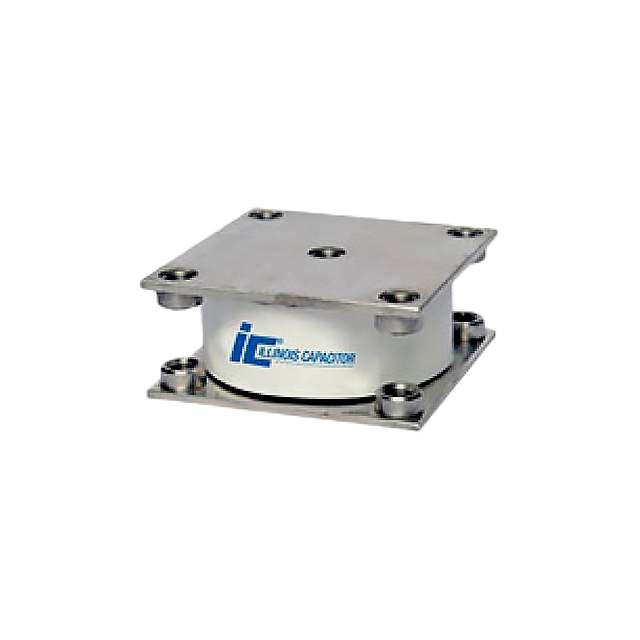

334LC3700KL505HM6 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 334LC3700KL505HM6
Manufacturer/Brand: Illinois Capacitor
Product description CAP FILM 0.33UF 10% 700VAC SMD
Datasheets: 1.334LC3700KL505HM6.pdf2.334LC3700KL505HM6.pdf3.334LC3700KL505HM6.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 819 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 819 pcs
Reference Price (In US Dollars)
1 pcs
$37.713
10 pcs
$35.763
100 pcs
$33.162
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$37.713

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 334LC3700KL505HM6

Part Number 334LC3700KL505HM6 Manufacturer Illinois Capacitor
Description CAP FILM 0.33UF 10% 700VAC SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 819 pcs Data sheet 1.334LC3700KL505HM6.pdf2.334LC3700KL505HM6.pdf3.334LC3700KL505HM6.pdf
Voltage Rating - DC - Voltage Rating - AC 700V
Tolerance ±10% Termination Solder Pads
Size / Dimension 1.969" L x 1.969" W (50.00mm x 50.00mm) Series LC3
Ratings - Packaging Bulk
Package / Case Nonstandard Other Names 1572-1583
Operating Temperature -40°C ~ 85°C Mounting Type Surface Mount
Manufacturer Standard Lead Time 23 Weeks Lead Spacing -
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height - Seated (Max) 1.339" (34.00mm)
Features - ESR (Equivalent Series Resistance) 1 mOhms
Dielectric Material Polypropylene (PP) Detailed Description 0.33µF Film Capacitor 700V Polypropylene (PP) Nonstandard
Capacitance 0.33µF Applications Conduction Cooled; High Pulse, DV/DT
