109KBM010M

Illinois CapacitorIllinois Capacitor

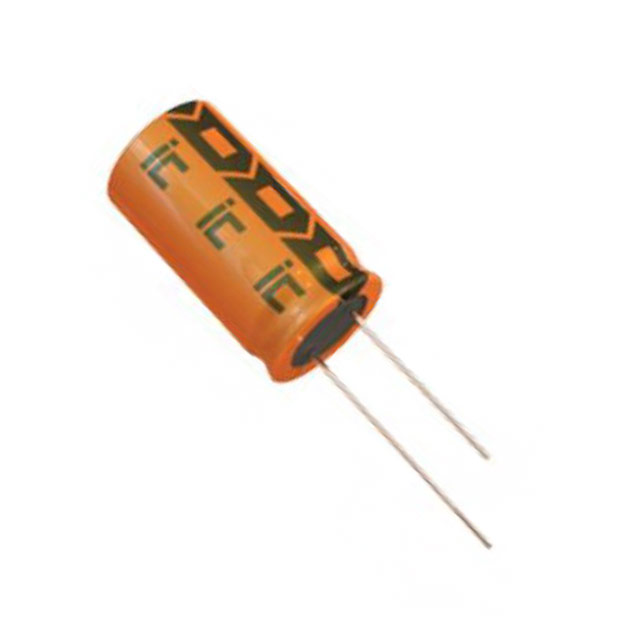

109KBM010M Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 109KBM010M
Manufacturer/Brand: Illinois Capacitor
Product description CAP ALUM 10000UF 20% 10V T/H
Datasheets: 109KBM010M.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 62028 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 62028 pcs
Reference Price (In US Dollars)
200 pcs
$0.518
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.518

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 109KBM010M

Part Number 109KBM010M Manufacturer Illinois Capacitor
Description CAP ALUM 10000UF 20% 10V T/H Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 62028 pcs Data sheet 109KBM010M.pdf
Voltage - Rated 10V Tolerance ±20%
Surface Mount Land Size - Size / Dimension 0.709" Dia (18.00mm)
Series KBM Ripple Current @ Low Frequency 2.992A @ 120Hz
Ripple Current @ High Frequency 3.52A @ 100kHz Ratings -
Polarization Polar Packaging Bulk
Package / Case Radial, Can Operating Temperature -40°C ~ 105°C
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 22 Weeks Lifetime @ Temp. 8000 Hrs @ 105°C
Lead Spacing 0.295" (7.50mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Impedance 18 mOhms Height - Seated (Max) 1.457" (37.00mm)
ESR (Equivalent Series Resistance) 61 mOhm @ 120Hz Detailed Description 10000µF 10V Aluminum Electrolytic Capacitors Radial, Can 61 mOhm @ 120Hz 8000 Hrs @ 105°C
Capacitance 10000µF Applications General Purpose
