CPC1301GR

IXYS Integrated Circuits Division

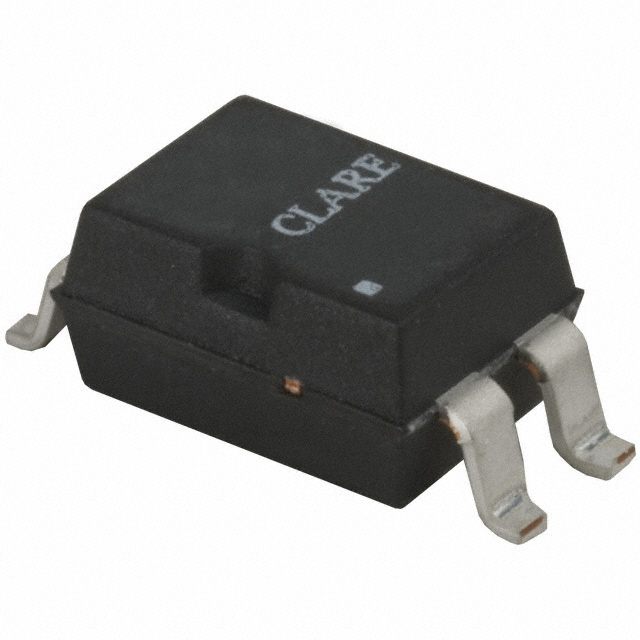

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CPC1301GR
Manufacturer/Brand:	IXYS Integrated Circuits Division
Product description	OPTOISOLTR 5KV DARLINGTON 4-SMD
Datasheets:	CPC1301GR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	189888 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 189888 pcs

Reference Price (In US Dollars)

500 pcs: $0.184

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.184

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CPC1301GR

Part Number	CPC1301GR	Manufacturer	IXYS Integrated Circuits Division
Description	OPTOISOLTR 5KV DARLINGTON 4-SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	189888 pcs	Data sheet	CPC1301GR.pdf
Voltage - Output (Max)	350V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	1.2V
Turn On / Turn Off Time (Typ)	1µs, 80µs	Supplier Device Package	4-SMD
Series	-	Rise / Fall Time (Typ)	40µs, 2.6µs
Packaging	Tube	Package / Case	4-SMD, Gull Wing
Output Type	Darlington	Operating Temperature	-40°C ~ 85°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	5 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Darlington Output 5000Vrms 1 Channel 4-SMD	Current Transfer Ratio (Min)	1000% @ 1mA
Current Transfer Ratio (Max)	8000% @ 1mA	Current - Output / Channel	-
Current - DC Forward (If) (Max)	1mA
