IXFV22N60PS

IXYS Corporation

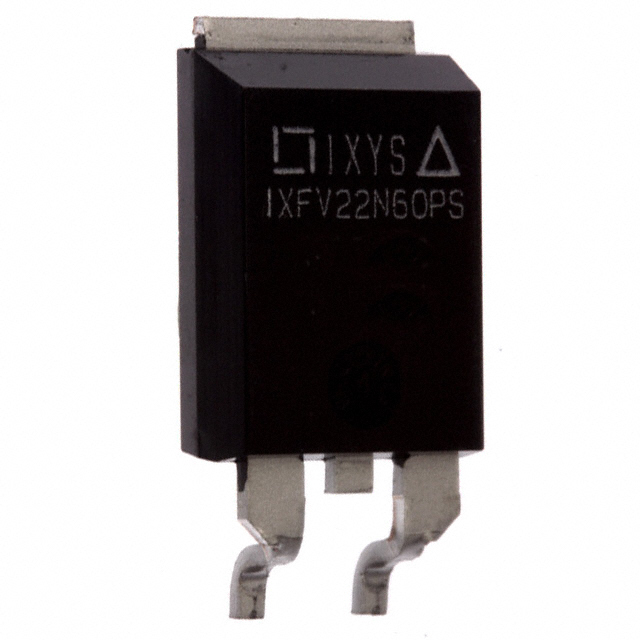

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IXFV22N60PS
Manufacturer/Brand:	IXYS Corporation
Product description	MOSFET N-CH 600V 22A PLUS220-SMD
Datasheets:	IXFV22N60PS.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6172 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6172 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IXFV22N60PS

Part Number	IXFV22N60PS	Manufacturer	IXYS Corporation
Description	MOSFET N-CH 600V 22A PLUS220-SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6172 pcs	Data sheet	IXFV22N60PS.pdf
Vgs(th) (Max) @ Id	5.5V @ 4mA	Vgs (Max)	±30V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	PLUS-220SMD
Series	HiPerFET™, PolarHT™	Rds On (Max) @ Id, Vgs	350 mOhm @ 11A, 10V
Power Dissipation (Max)	400W (Tc)	Packaging	Tube
Package / Case	PLUS-220SMD	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	3600pF @ 25V
Gate Charge (Qg) (Max) @ Vgs	58nC @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	10V
Drain to Source Voltage (Vdss)	600V	Detailed Description	N-Channel 600V 22A (Tc) 400W (Tc) Surface Mount PLUS-220SMD
Current - Continuous Drain (Id) @ 25°C	22A (Tc)
