DHH55-36N1F

IXYS Corporation

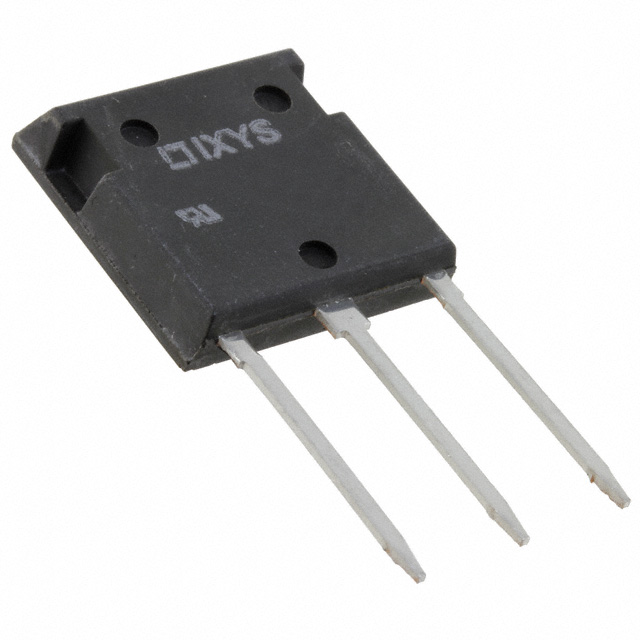

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DHH55-36N1F
Manufacturer/Brand:	IXYS Corporation
Product description	DIODE ARRAY GP 1800V 60A I4PAC
Datasheets:	DHH55-36N1F.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4032 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4032 pcs

Reference Price (In US Dollars)

1 pcs: $7.976

25 pcs: $6.708

100 pcs: $6.164

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.976

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DHH55-36N1F

Part Number	DHH55-36N1F	Manufacturer	IXYS Corporation
Description	DIODE ARRAY GP 1800V 60A I4PAC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4032 pcs	Data sheet	DHH55-36N1F.pdf
Voltage - Forward (Vf) (Max) @ If	2.04V @ 60A	Voltage - DC Reverse (Vr) (Max)	1800V
Supplier Device Package	i4-PAC™	Speed	Fast Recovery = 200mA (Io)
Series	-	Reverse Recovery Time (trr)	230ns
Packaging	Tube	Package / Case	i4-Pac™-3
Other Names	DHH 55-36N1F DHH5536N1F	Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	32 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Standard	Diode Configuration	1 Pair Series Connection
Detailed Description	Diode Array 1 Pair Series Connection Standard 1800V 60A Through Hole i4-Pac™-3	Current - Reverse Leakage @ Vr	200µA @ 1800V
Current - Average Rectified (Io) (per Diode)	60A
