CS20-22MOF1

IXYS Corporation

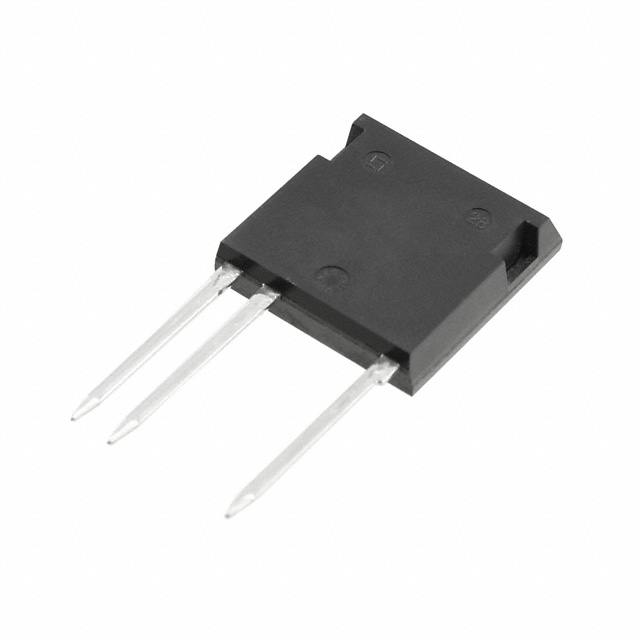

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CS20-22MOF1
Manufacturer/Brand:	IXYS Corporation
Product description	THYRISTOR PHASE 2200V I4-PAC
Datasheets:	CS20-22MOF1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3677 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3677 pcs

Reference Price (In US Dollars)

1 pcs: $8.858

10 pcs: $8.193

25 pcs: $7.529

100 pcs: $6.998

250 pcs: $6.422

500 pcs: $6.112

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$8.858

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CS20-22MOF1

Part Number	CS20-22MOF1	Manufacturer	IXYS Corporation
Description	THYRISTOR PHASE 2200V I4-PAC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3677 pcs	Data sheet	CS20-22MOF1.pdf
Voltage - On State (Vtm) (Max)	1.5V	Voltage - Off State	2.2kV
Voltage - Gate Trigger (Vgt) (Max)	2.3V	Supplier Device Package	ISOPLUS i4-PAC™
Series	-	SCR Type	Standard Recovery
Packaging	Tube	Package / Case	i4-Pac™-4, Isolated
Other Names	CS2022MOF1	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	32 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	SCR 2.2kV Standard Recovery Through Hole ISOPLUS i4-PAC™	Current - On State (It (AV)) (Max)	18A
Current - Off State (Max)	50µA	Current - Non Rep. Surge 50, 60Hz (Itsm)	200A @ 50Hz
Current - Hold (Ih) (Max)	150mA	Current - Gate Trigger (Igt) (Max)	250mA
Base Part Number	CS20
