ZM10D20D01

Honeywell Sensing and Productivity Solutions

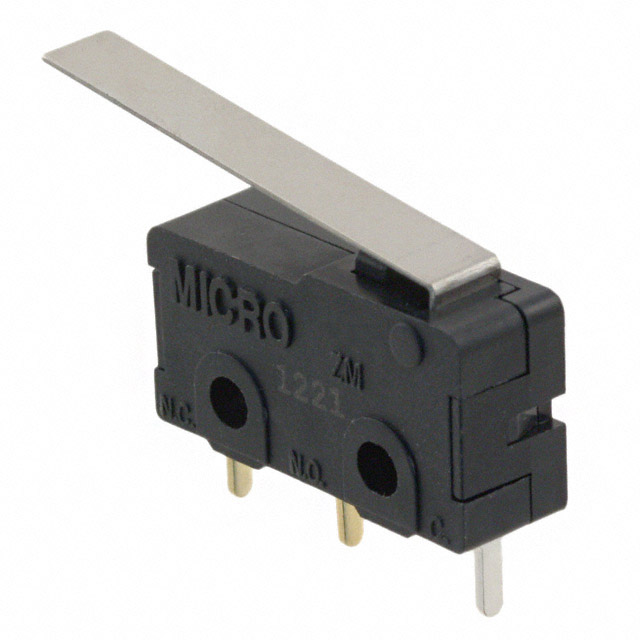

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ZM10D20D01
Manufacturer/Brand:	Honeywell Sensing and Productivity Solutions
Product description	SWITCH SNAP ACT SPDT 100MA 125V
Datasheets:	1.ZM10D20D01.pdf 2.ZM10D20D01.pdf 3.ZM10D20D01.pdf 4.ZM10D20D01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25799 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 25799 pcs

Reference Price (In US Dollars)

1 pcs: $1.232

10 pcs: $0.80

25 pcs: $0.727

50 pcs: $0.654

100 pcs: $0.612

250 pcs: $0.578

500 pcs: $0.542

1000 pcs: $0.518

5000 pcs: $0.474

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.232

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ZM10D20D01

Part Number	ZM10D20D01	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25799 pcs	Data sheet	1.ZM10D20D01.pdf 2.ZM10D20D01.pdf 3.ZM10D20D01.pdf 4.ZM10D20D01.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Function	On-Mom
Series	ZM	Release Force	5.000gf
Pretravel	0.240" (6.1mm)	Packaging	Bulk
Overtravel	0.030" (0.76mm)	Other Names	480-5334 ZM10D20D01-ND
Operating Temperature	-40°C ~ 120°C	Operating Position	0.350" (8.9mm)
Operating Force	20gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	10,000 Cycles	Differential Travel	-
Current Rating	100mA (AC/DC)	Circuit	SPDT
Actuator Type	Lever, Straight
