EX-AR

Honeywell Sensing and Productivity SolutionsHoneywell Sensing and Productivity Solutions

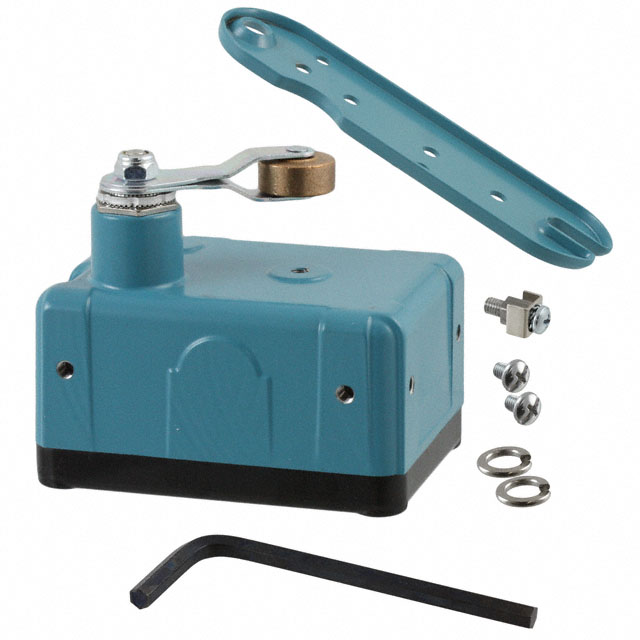

EX-AR Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: EX-AR
Manufacturer/Brand: Honeywell Sensing and Productivity Solutions
Product description SWITCH SNAP ACTION SPDT 15A 125V
Datasheets: 1.EX-AR.pdf2.EX-AR.pdf3.EX-AR.pdf4.EX-AR.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 345 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 345 pcs
Reference Price (In US Dollars)
1 pcs
$94.919
10 pcs
$92.044
25 pcs
$86.291
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$94.919

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of EX-AR

Part Number EX-AR Manufacturer Honeywell Sensing and Productivity Solutions
Description SWITCH SNAP ACTION SPDT 15A 125V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 345 pcs Data sheet 1.EX-AR.pdf2.EX-AR.pdf3.EX-AR.pdf4.EX-AR.pdf
Voltage Rating - DC 125V Voltage Rating - AC 125V
Termination Style Screw Terminal Switch Function On-Mom
Series EX Release Force 113gf
Pretravel 0.219" (5.6mm) Packaging Bulk
Overtravel 90° Other Names 480-3698
EX-AR-ND
EXAR
Operating Temperature -40°C ~ 71°C Operating Position -
Operating Force 227 ~ 567gf Mounting Type Chassis Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life -
Manufacturer Standard Lead Time 6 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Ingress Protection - Features Explosion Proof
Electrical Life - Differential Travel 0.007" (0.18mm)
Current Rating 15A (AC), 500mA (DC) Circuit SPDT
Actuator Type Side Rotary, Roller
