Hirose Electric Co Ltd

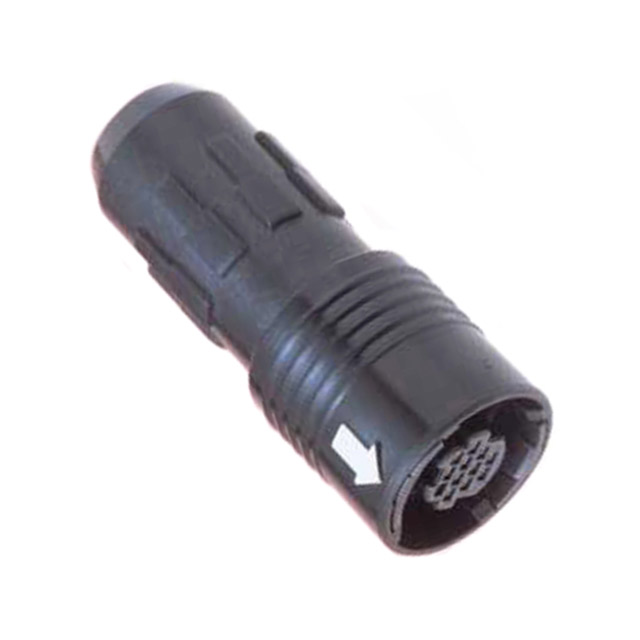

| Part Number | HR30-7P-12SC | Manufacturer | Hirose Electric Co Ltd |
|---|---|---|---|
| Description | CONN PLUG 12POS FEMALE CRIMP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3098 pcs | Data sheet | HR30-7P-12SC.pdf |
| Wire Gauge or Range - AWG | - | Usage | Unshielded |
| Type Attributes | IP67/68 - Dust Tight, Waterproof | Type | For Female Sockets |
| Stacking Direction | Crimp | Shield Termination | Circular |
| Shell Material, Finish | - | Shell Finish | Polyphenylene Sulfide (PPS) |
| Series | HR30 | RoHS Status | Tray |
| Plug/Mating Plug Diameter | Black | Other Names | *HR30-7P-12SC HR307P12SC HR862 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 12 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Part Number | HR30-7P-12SC | Large Diameter Supplied | 7 |
| Insert Material | - | Includes | 6 pcs - 2 pc Connector, 1 Backshell, 1 Bushing, 1 Cage Clamp, 1 Spring |
| Features | Backshell, Strain Relief | Expanded Description | 12 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Strain Relief |
| Description | CONN PLUG 12POS FEMALE CRIMP | Current - Max/Contact | Push-Pull |
| Coupling Nut Material, Plating | - | Coupling Nut Diameter | - |
| Contact Shape | Polyphenylene Sulfide (PPS) | Contact Material | Keyed |
| Connector Type | Plug Housing | Body Material | - |
