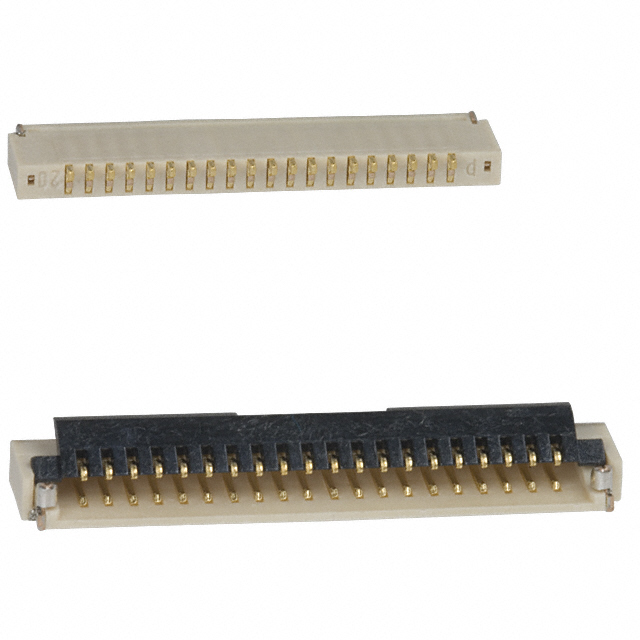

Hirose Electric Co Ltd
| Part Number | FH19SC-20S-0.5SH(99) | Manufacturer | Hirose Electric Co Ltd |
|---|---|---|---|
| Description | CONN FFC BOTTOM 20POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40538 pcs | Data sheet | 1.FH19SC-20S-0.5SH(99).pdf2.FH19SC-20S-0.5SH(99).pdf3.FH19SC-20S-0.5SH(99).pdf |
| Voltage - DC Spark Over (Nom) | Phosphor Bronze | Termination | Solder |
| Simplex/Duplex | Black | Series | FH19SC |
| RoHS Status | Tape & Reel (TR) | Plug/Mating Plug Diameter | Beige |
| Pitch - Connector | 50V | Other Names | 580-0502-8-99 |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 20 |
| Number of Conductors | 0.020" (0.50mm) | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Manufacturer Part Number | FH19SC-20S-0.5SH(99) |
| Locking Feature | 0.30mm | Height Above Board | 0.037" (0.95mm) |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | Contacts, Bottom |
| Expanded Description | 20 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Description | CONN FFC BOTTOM 20POS 0.50MM R/A |
| Current Rating | 0.5A | Contact Finish Thickness | Gold |
| Connector/Contact Type | FFC, FPC | Center Contact Finish | 20 |
| Cable Opening | Liquid Crystal Polymer (LCP), Halogen Free | Cable End Type | Flip Lock |
| Cable Diameter | - | Actuator Material | Tapered |
| Actuator Color | Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) |
