Hirose
| Part Number | UM-QR-1(41) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN UMC RCPT STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9691 pcs | Data sheet | UM-QR-1(41).pdf |
| Shield Termination | Solder Tag | Series | UM |
| Packaging | Bulk | Other Names | H124490 Q4516993A UM-QR-1(41)-ND |
| Operating Temperature | -55°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 1000 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |

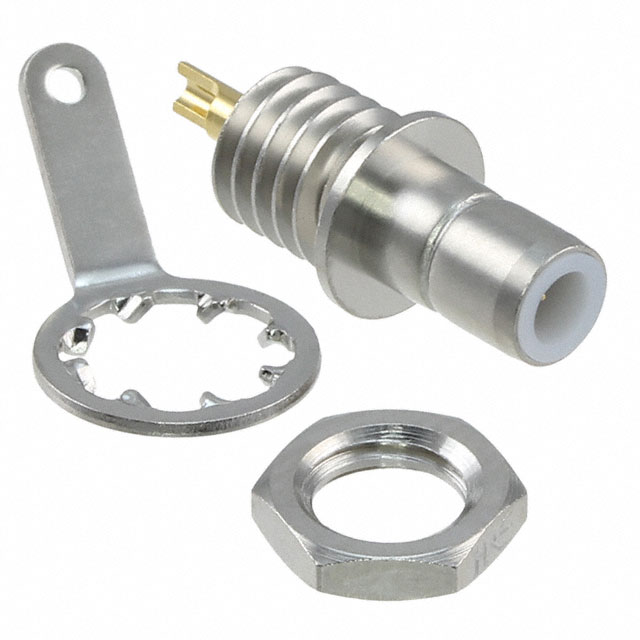

| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 1GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | Ultra Miniature Coaxial Connector Receptacle, Male Pin 50 Ohm Panel Mount Solder Cup |
| Contact Termination | Solder Cup | Connector Type | Receptacle, Male Pin |
| Connector Style | Ultra Miniature Coaxial | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
