Hirose

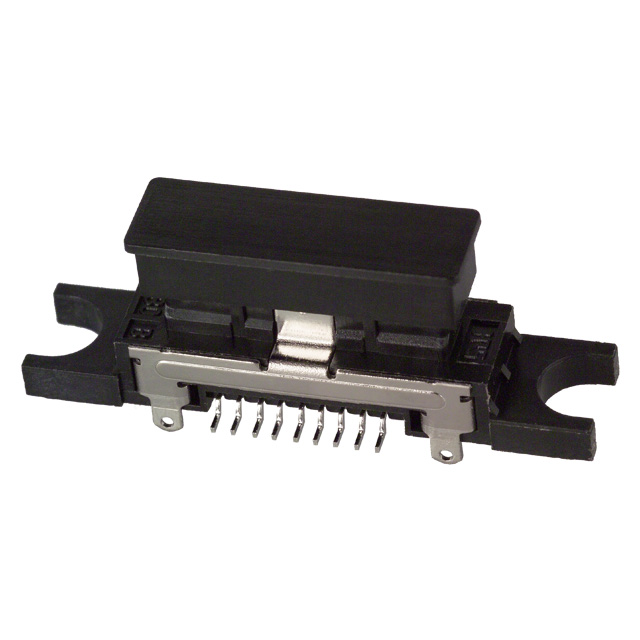

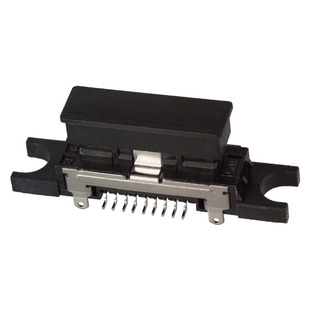

| Part Number | ST80X-18S(30) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG 18POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48505 pcs | Data sheet | ST80X-18S(30).pdf |
| Voltage Rating | 100V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | - |
| Series | ST | Row Spacing - Mating | - |
| Pitch - Mating | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | 241-0020-0-30 H125268TR |
| Operating Temperature | -30°C ~ 80°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 18 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.378" (9.60mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Mounting Flange, Shielded | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Surface Mount 18 position 0.039" (1.00mm) | Current Rating | 0.5A |
| Contact Type | Non-Gendered | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Plug, Cradle |
| Applications | - |
