Hirose

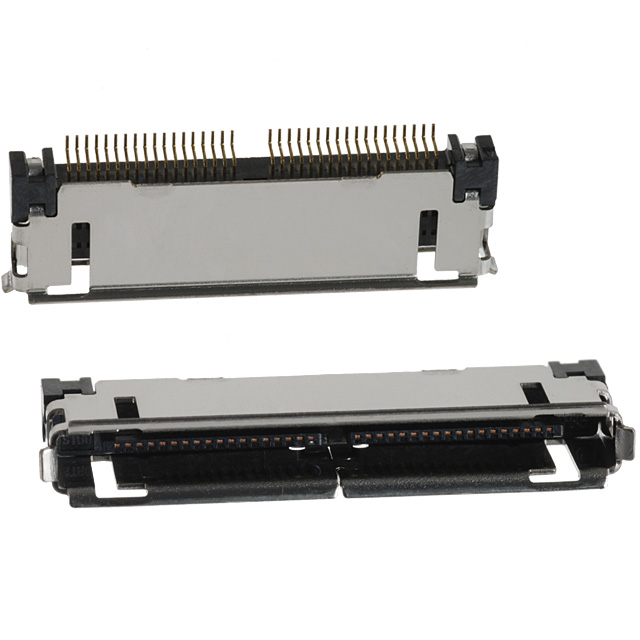

| Part Number | ST60-36PR | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 36POS R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35574 pcs | Data sheet | ST60-36PR.pdf |
| Voltage Rating | 100VAC | Termination | Solder |
| Style | Board to Cable/Wire | Series | ST |
| Row Spacing - Mating | - | Pitch - Mating | 0.020" (0.50mm) |
| Packaging | Cut Tape (CT) | Other Names | H121946CT |
| Operating Temperature | -30°C ~ 80°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 36 |
| Mounting Type | Board Edge, Surface Mount, Right Angle, Reverse Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | - | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Shielded |
| Fastening Type | Latch Holder | Detailed Description | 36 Position Receptacle Connector 0.020" (0.50mm) Board Edge, Surface Mount, Right Angle, Reverse Mount Gold |
| Current Rating | 0.5A | Contact Type | Non-Gendered |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Telecommunications |
