Hirose

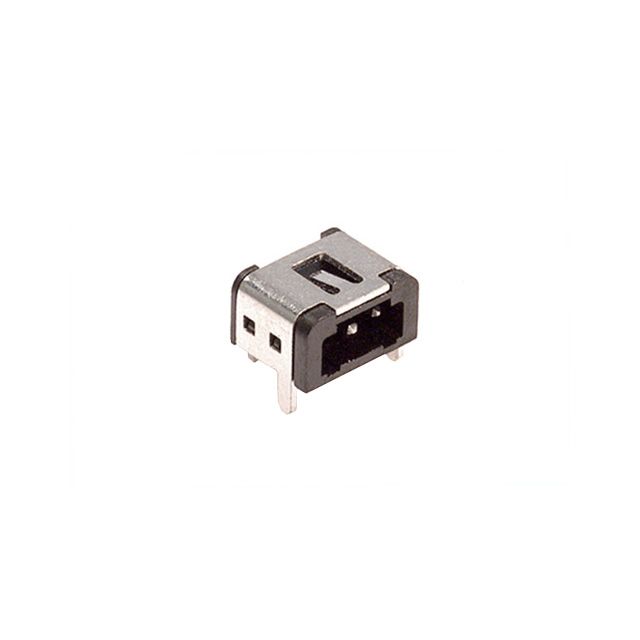

| Part Number | RP34L-5R-3PD | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT POWR SUPPLY 3POS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3647 pcs | Data sheet | RP34L-5R-3PD.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | RP34L | Row Spacing - Mating | - |
| Pitch - Mating | 0.092" (2.35mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | *RP34L-5R-3PD H2349 |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.240" (6.10mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Shielded |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.092" (2.35mm) |
| Current Rating | 5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.098" (2.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Palladium |
| Connector Type | Header | Applications | - |
