Hirose
| Part Number | RDED-9SE-LNA(55) | Manufacturer | Hirose |
|---|---|---|---|

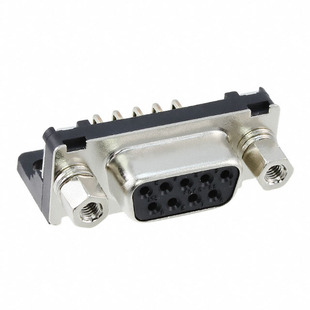

| Description | CONN D-SUB RCPT 9POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12987 pcs | Data sheet | RDED-9SE-LNA(55).pdf |
| Wire Gauge | - | Voltage Rating | 350V |
| Termination | Solder | Shell Size, Connector Layout | 1 (DE, E) |
| Shell Material, Finish | Steel, Nickel Plated | Series | RD*D |
| Packaging | Tray | Other Names | H122906 |
| Operating Temperature | -55°C ~ 85°C | Number of Rows | 2 |
| Number of Positions | 9 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Mating Side, Female Screwlock (M2.6) | Features | - |
| Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector | Current Rating | 3A |
| Contact Type | Signal | Contact Material | Phosphor Bronze |
| Contact Form | - | Contact Finish Thickness | 8.00µin (0.203µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub | Color | Black |
| Backset Spacing | - |
