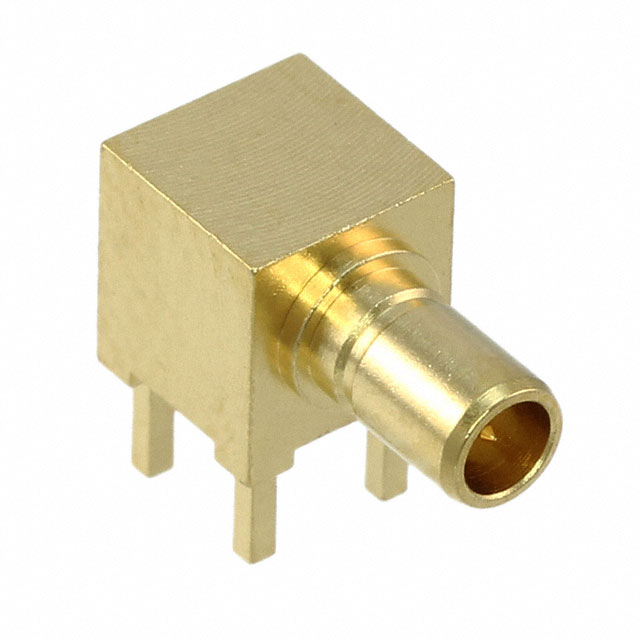

Hirose
| Part Number | PL75-LR-PC | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN UMC RECEPT R/A 75OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7750 pcs | Data sheet | PL75-LR-PC.pdf |
| Shield Termination | Solder | Series | PL75 |
| Packaging | Bulk | Other Names | 334-0075-1-00 H124302 PL75-LR-PC-ND |
| Operating Temperature | -30°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Housing Color | Gold | Frequency - Max | 1.5GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | Ultra Miniature Coaxial Connector Receptacle, Male Pin 75 Ohm Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Male Pin |
| Connector Style | Ultra Miniature Coaxial | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
