Hirose
| Part Number | MSS-R(40) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN MSS RCPT STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9341 pcs | Data sheet | MSS-R(40).pdf |
| Shield Termination | Solder Tag | Series | MSS |
| Packaging | Bulk | Other Names | H124214 MSS-R(40)-ND Q6627908A |
| Operating Temperature | -30°C ~ 60°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Rear Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 3000 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |

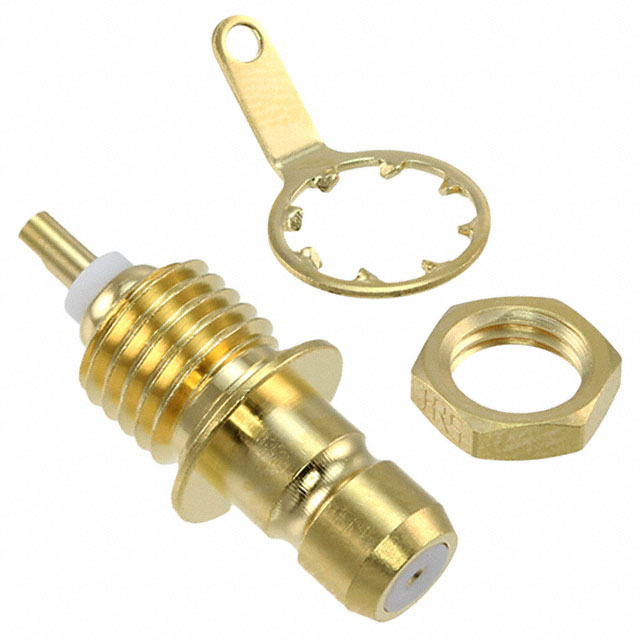

| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Solder Tag | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 1GHz |
| Features | Extended Insulation | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | MSS Connector Receptacle, Female Socket 50 Ohm Panel Mount Solder Cup |
| Contact Termination | Solder Cup | Connector Type | Receptacle, Female Socket |
| Connector Style | MSS | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
