Hirose

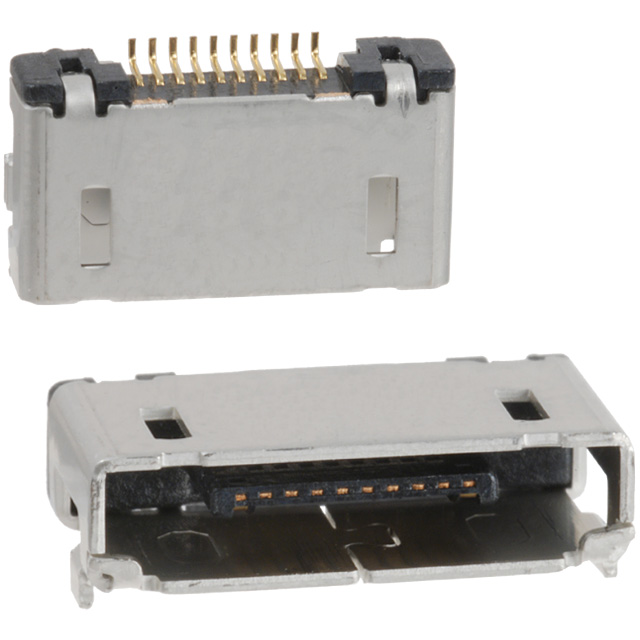

| Part Number | MQ212-10P | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT 10POS 0.5MM R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67203 pcs | Data sheet | MQ212-10P.pdf |
| Voltage Rating | 50VAC | Termination | Solder |
| Style | Board to Cable/Wire | Series | MQ212 |
| Row Spacing - Mating | - | Pitch - Mating | 0.020" (0.50mm) |
| Packaging | Tape & Reel (TR) | Other Names | H11455TR MQ21210P |
| Operating Temperature | -40°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.112" (2.85mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | 10 Position Receptacle Connector 0.020" (0.50mm) Surface Mount, Right Angle Gold | Current Rating | 0.3A |
| Contact Type | Center Strip Contact | Contact Shape | - |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
