MDF6-10DP-3.5DS(05)

Hirose

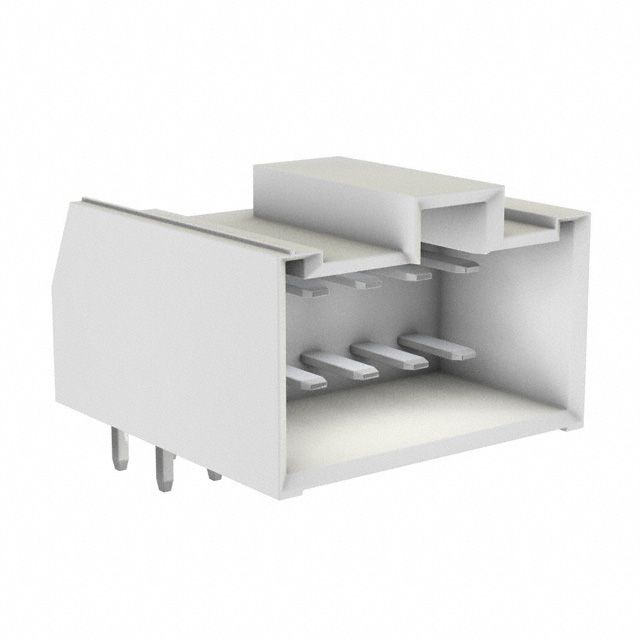

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MDF6-10DP-3.5DS(05)
Manufacturer/Brand:	Hirose
Product description	CONN HDR 10POS 3.5MM
Datasheets:	MDF6-10DP-3.5DS(05).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	40820 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 40820 pcs

Reference Price (In US Dollars)

1 pcs: $0.791

10 pcs: $0.717

25 pcs: $0.673

50 pcs: $0.644

100 pcs: $0.614

250 pcs: $0.556

500 pcs: $0.512

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.791

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MDF6-10DP-3.5DS(05)

Part Number	MDF6-10DP-3.5DS(05)	Manufacturer	Hirose
Description	CONN HDR 10POS 3.5MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	40820 pcs	Data sheet	MDF6-10DP-3.5DS(05).pdf
Voltage Rating	300V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MDF6	Row Spacing - Mating	0.197" (5.00mm)
Pitch - Mating	0.138" (3.50mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	547-0273-8-05 H124165 MDF6-10DP-3.5DS(05)-ND
Operating Temperature	-35°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.445" (11.30mm)
Insulation Color	White	Ingress Protection	-
Features	-	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 10 position 0.138" (3.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.220" (5.59mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	39.4µin (1.00µm)	Contact Finish - Post	-
Contact Finish - Mating	Tin-Copper	Connector Type	Header
Applications	-
