Hirose

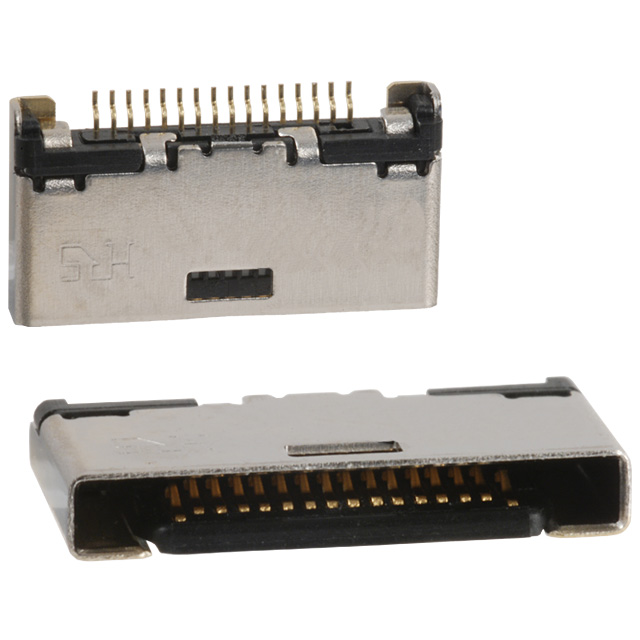

| Part Number | LX60-16S | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT 16POS .5MM RT ANG SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37256 pcs | Data sheet | LX60-16S.pdf |
| Voltage Rating | 50VAC | Termination | Solder |
| Style | Board to Cable/Wire | Series | LX |
| Row Spacing - Mating | - | Pitch - Mating | 0.020" (0.50mm) |
| Packaging | Cut Tape (CT) | Other Names | *LX60-16S H11403CT |
| Operating Temperature | -40°C ~ 70°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA9T), Nylon 9T | Insulation Height | 0.079" (2.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Friction Lock |
| Detailed Description | 16 Position Receptacle Connector 0.020" (0.50mm) Surface Mount, Right Angle Gold | Current Rating | 0.5A |
| Contact Type | Center Strip Contact | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Telecommunications |
