Hirose

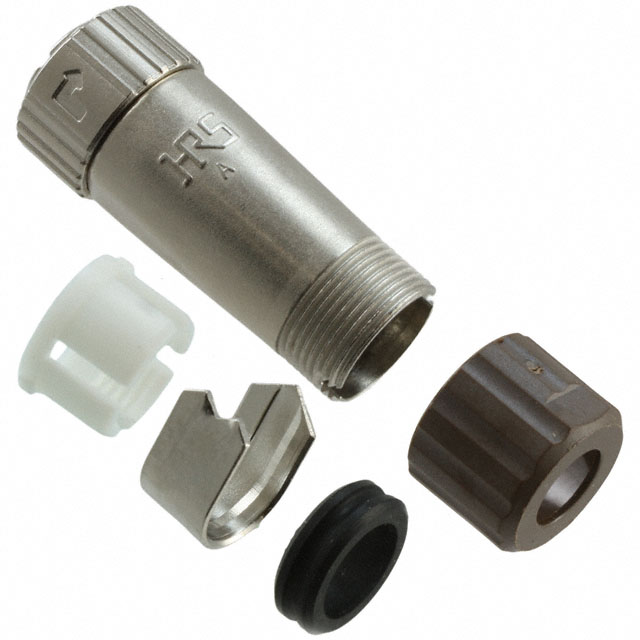

| Part Number | LF13WBP-11S | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG FMALE 11POS GOLD SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3822 pcs | Data sheet | LF13WBP-11S.pdf |
| Voltage Rating | - | Termination | Solder Cup |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | 13 | Shell Material | Zinc Alloy |
| Shell Finish | Nickel | Series | LF |
| Packaging | Bulk | Other Names | *LF13WBP-11S HR1927 LF13WBP11S |
| Orientation | Keyed | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 11 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyphenylene Sulfide (PPS) |
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Features | Backshell, Clamp, Coupling Nut, Strain Relief |
| Fastening Type | Bayonet Lock | Detailed Description | 11 Position Circular Connector Plug, Female Sockets Solder Cup Gold |
| Current Rating | 2A, 10A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Mating | Gold |
| Connector Type | Plug, Female Sockets | Color | Brown, Silver |
| Cable Opening | - | Backshell Material, Plating | Zinc Alloy, Nickel |
| Applications | Industrial, Telecommunications |
