Hirose
| Part Number | LF10WBR-12P | Manufacturer | Hirose |
|---|---|---|---|

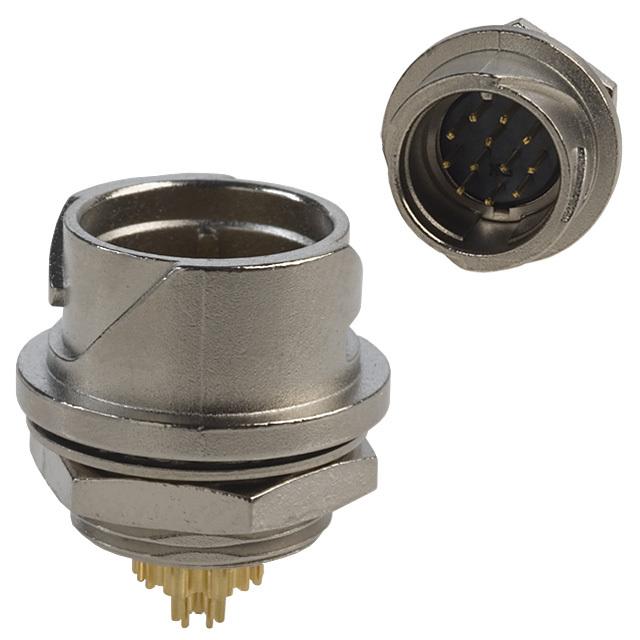

| Description | CONN RCPT MALE 12POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8552 pcs | Data sheet | LF10WBR-12P.pdf |
| Voltage Rating | 30VAC, 42VDC | Termination | Solder Cup |
| Shielding | - | Shell Size, MIL | - |
| Shell Size - Insert | 10 | Shell Material | Zinc Alloy |
| Shell Finish | Nickel | Series | LF |
| Packaging | Tray | Other Names | *LF10WBR-12P HR558 LF10WBR12P |
| Orientation | Keyed | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 12 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyphenylene Sulfide (PPS) |
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Features | - |
| Fastening Type | Bayonet Lock | Detailed Description | 12 Position Circular Connector Receptacle, Male Pins Solder Cup Gold |
| Current Rating | 2A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Male Pins | Color | Silver |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | Industrial, Telecommunications |
