Hirose
| Part Number | LF07WBP-3S | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG FMALE 3POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6398 pcs | Data sheet | LF07WBP-3S.pdf |
| Voltage Rating | 125VAC, 175VDC | Termination | Solder Cup |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | 7 | Shell Material | Zinc Alloy |
| Shell Finish | Nickel | Series | LF |
| Packaging | Bulk | Other Names | *LF07WBP-3S HR542 LF07WBP3S |
| Orientation | Keyed | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 3 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyphenylene Sulfide (PPS) | Ingress Protection | IP67/68 - Dust Tight, Waterproof |
| Features | Backshell, Clamp, Coupling Nut, Strain Relief | Fastening Type | Bayonet Lock |

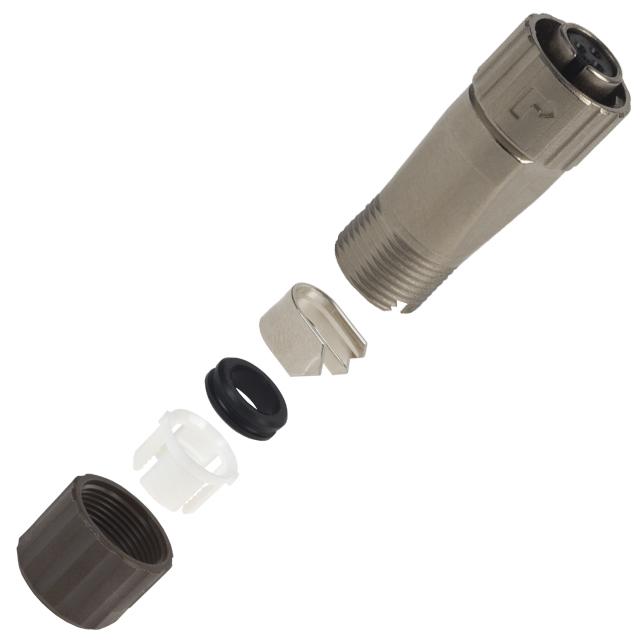

| Detailed Description | 3 Position Circular Connector Plug, Female Sockets Solder Cup Gold | Current Rating | 5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Mating | Gold | Connector Type | Plug, Female Sockets |
| Color | Brown, Silver | Cable Opening | - |
| Backshell Material, Plating | Zinc Alloy, Nickel | Applications | Industrial, Telecommunications |
