Hirose

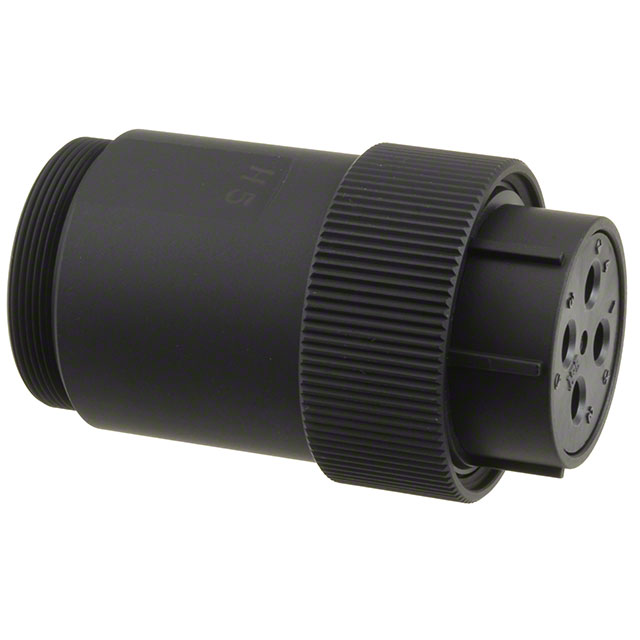

| Part Number | JR25WPH-4S | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG FMALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1884 pcs | Data sheet | |
| Voltage Rating | 300VAC, 420VDC | Termination | Solder Cup |
| Shielding | - | Shell Size, MIL | - |
| Shell Size - Insert | 25 | Shell Material | Aluminum Alloy |
| Shell Finish | Black Chromium | Series | JR-W |
| Packaging | Tray | Other Names | 114-2183-4-00 H124141 JR25WPH-4S-ND |
| Orientation | Keyed | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 4 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyphenylene Sulfide (PPS) |
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Features | Backshell, Coupling Nut |
| Fastening Type | Threaded | Detailed Description | 4 Position Circular Connector Plug, Female Sockets Solder Cup Silver |
| Current Rating | 30A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) | Contact Finish - Mating | Silver |
| Connector Type | Plug, Female Sockets | Color | Black |
| Cable Opening | - | Backshell Material, Plating | Brass, Black Chrome |
| Applications | Automotive, Industrial, Telecommunications |
