Hirose

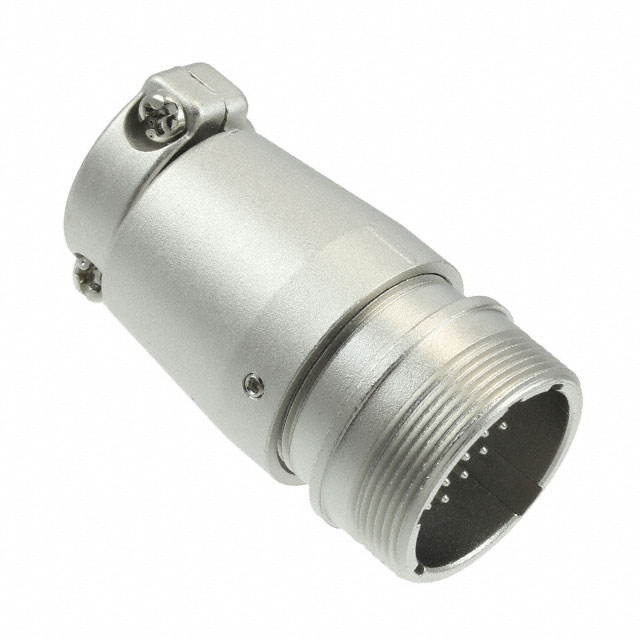

| Part Number | JR21JK-16P | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN JACK MALE 16POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6497 pcs | Data sheet | |
| Voltage Rating | 250VAC, 350VDC | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 21 | Shell Material | Aluminum Alloy |
| Shell Finish | Nickel | Series | JR |
| Packaging | Bulk | Other Names | H124753 JR21JK-16P-ND |
| Orientation | Keyed | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 16 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Phenol Formaldehyde (PF) |
| Ingress Protection | - | Features | Backshell, Cable Clamp |
| Fastening Type | Threaded | Detailed Description | 16 Position Circular Connector Jack, Male Pins Solder Cup Silver |
| Current Rating | 5A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Silver |
| Connector Type | Jack, Male Pins | Color | Silver |
| Cable Opening | 0.591" (15.00mm) | Backshell Material, Plating | Aluminum Alloy, Nickel |
| Applications | - |
