Hirose

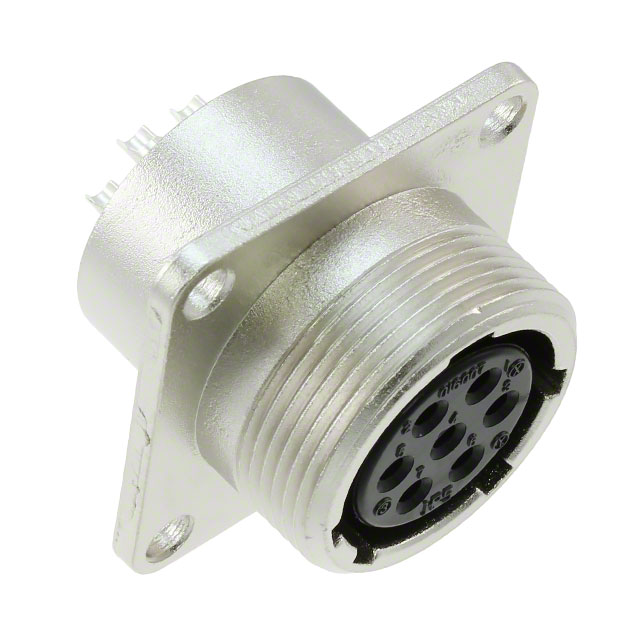

| Part Number | JR16RK-7S | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT FMALE 7POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14123 pcs | Data sheet | JR16RK-7S.pdf |
| Voltage Rating | 250VAC, 350VDC | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 16 | Shell Material | Aluminum Alloy |
| Shell Finish | Nickel | Series | JR |
| Packaging | Bulk | Other Names | H124110 JR16RK-7S-ND |
| Orientation | Keyed | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 7 | Mounting Type | Panel Mount |
| Mounting Feature | Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Phenol Formaldehyde (PF) |
| Ingress Protection | - | Features | - |
| Fastening Type | Threaded | Detailed Description | 7 Position Circular Connector Receptacle, Female Sockets Solder Cup Silver |
| Current Rating | 10A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) | Contact Finish - Mating | Silver |
| Connector Type | Receptacle, Female Sockets | Color | Silver |
| Cable Opening | 0.783" (19.90mm) | Backshell Material, Plating | - |
| Applications | - |
