Hirose
| Part Number | IT-PM-2S-DIR | Manufacturer | Hirose |
|---|---|---|---|

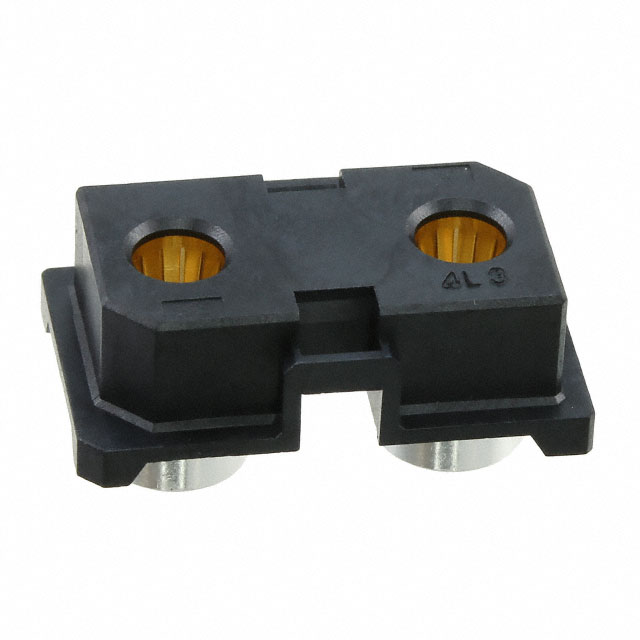

| Description | CONN RCPT 2POS LATCH MNT SIDE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8842 pcs | Data sheet | 1.IT-PM-2S-DIR.pdf2.IT-PM-2S-DIR.pdf |
| Voltage Rating | 300V | Termination | Solder |
| Style | Board to Board | Series | IT-P |
| Row Spacing - Mating | - | Pitch - Mating | 0.472" (12.00mm) |
| Packaging | Tape & Reel (TR) | Other Names | H122455TR |
| Operating Temperature | -55°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 11mm ~ 44mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.291" (7.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Latch Holder | Detailed Description | 2 Position Receptacle Connector 0.472" (12.00mm) Through Hole Gold |
| Current Rating | 60A per Contact | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.126" (3.20mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
