Hirose

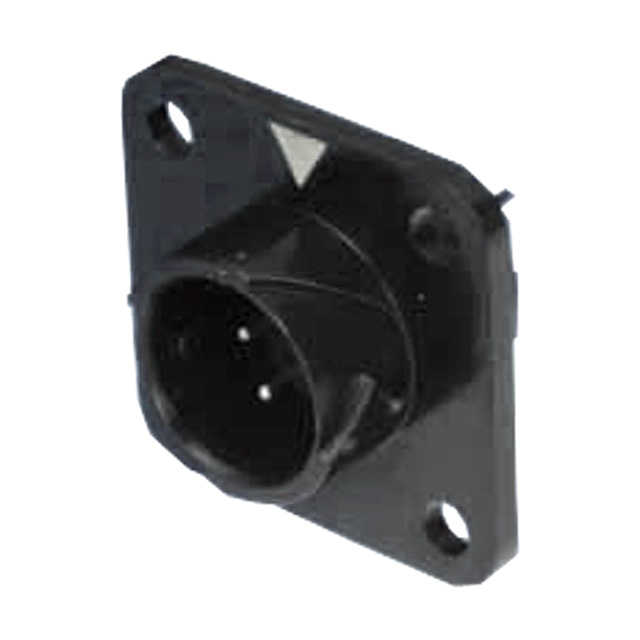

| Part Number | HR34B-12WRB-4P | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT MALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9183 pcs | Data sheet | 1.HR34B-12WRB-4P.pdf2.HR34B-12WRB-4P.pdf |
| Voltage Rating | - | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 12 | Shell Material | Zinc Alloy |
| Shell Finish | Chrome | Series | HR34B |
| Packaging | Tray | Other Names | *HR34B-12WRB-4P HR1913 HR34B12WRB4P |
| Orientation | N (Normal) | Operating Temperature | -25°C ~ 125°C |
| Number of Positions | 4 (Power) | Mounting Type | Panel Mount |
| Mounting Feature | Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyphenylene Sulfide (PPS) |
| Ingress Protection | IP67F/68F - Dust Tight, Oil Resistant, Waterproof | Features | - |
| Fastening Type | Bayonet Lock | Detailed Description | 4 (Power) Position Circular Connector Receptacle, Male Pins Solder Cup Silver |
| Current Rating | 5A | Contact Material | Brass |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) | Contact Finish - Mating | Silver |
| Connector Type | Receptacle, Male Pins | Color | Black |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | Telecommunications |
