Hirose

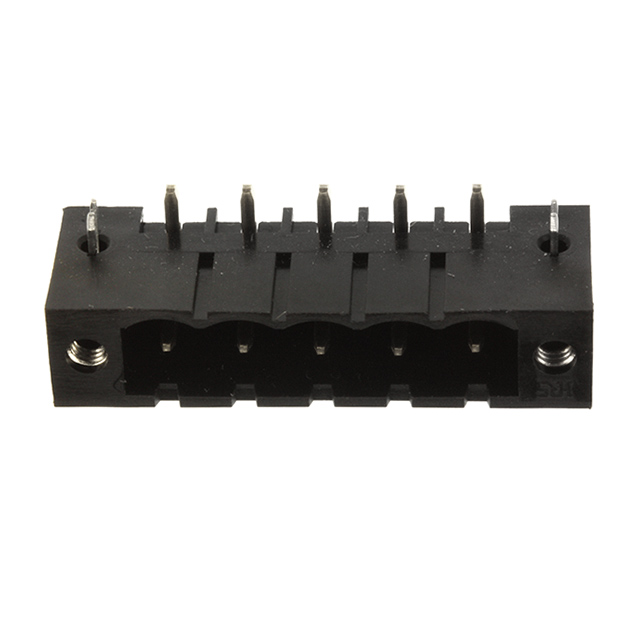

| Part Number | HR31-5.08R-5PDL(72) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 5POS 5.08MM R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19057 pcs | Data sheet | HR31-5.08R-5PDL(72).pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | HR31 | Row Spacing - Mating | - |
| Pitch - Mating | 0.200" (5.08mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | *HR31-5.08R-5PDL(72) H11444 HR31508R5PDL72 |
| Operating Temperature | -40°C ~ 100°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 5 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.339" (8.61mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock, Mating Flange | Fastening Type | Threaded |
| Detailed Description | Connector Header Through Hole, Right Angle 5 position 0.200" (5.08mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | 0.130" (3.30mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
