Hirose

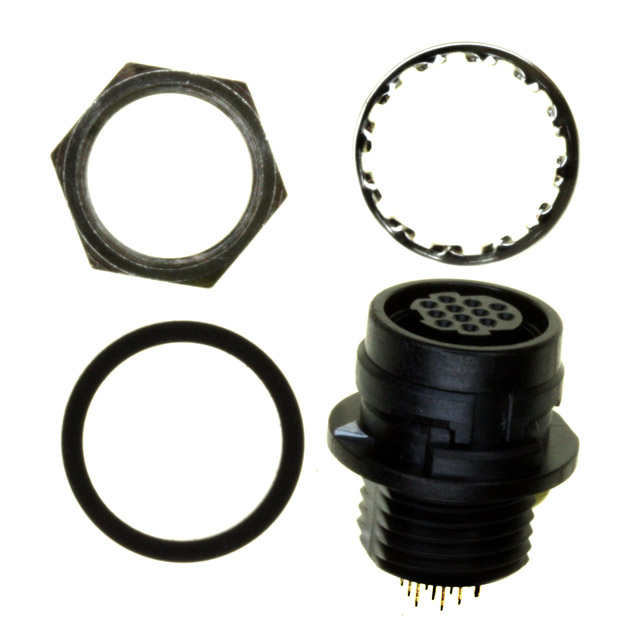

| Part Number | HR30-8R-12SD(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT FMALE 12POS GOLD SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12250 pcs | Data sheet | HR30-8R-12SD(71).pdf |
| Voltage Rating | 30VAC, 42VDC | Termination | Solder |
| Shielding | - | Shell Size, MIL | - |
| Shell Size - Insert | 8 | Shell Material | Polyphenylene Sulfide (PPS) |
| Shell Finish | - | Series | HR30 |
| Packaging | Tray | Other Names | HR1946 HR308R12SD71 |
| Orientation | Keyed | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 12 (Power) | Mounting Type | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead - Rear Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyphenylene Sulfide (PPS) | Ingress Protection | IP67/68 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 12 (Power) Position Circular Connector Receptacle, Female Sockets Solder Gold | Current Rating | 2A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Industrial, Marine, Medical |
