Hirose

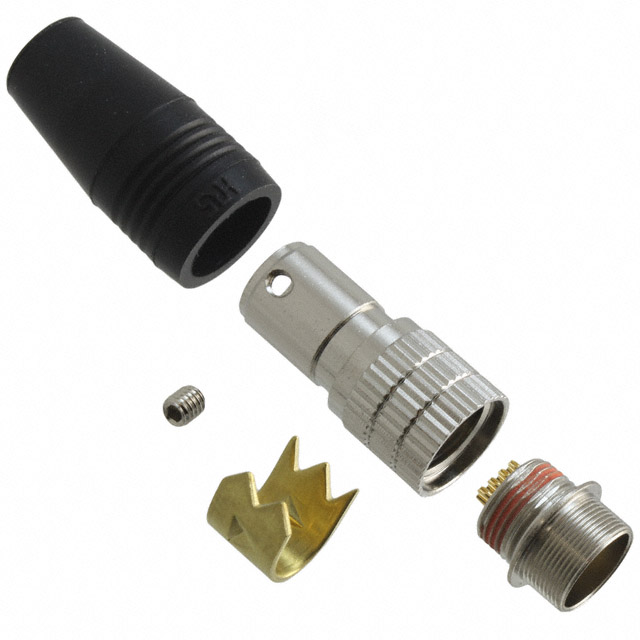

| Part Number | HR25-9TJ-12P(72) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN JACK MALE 12POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3291 pcs | Data sheet | HR25-9TJ-12P(72).pdf |
| Voltage Rating | 30VAC, 42VDC | Termination | Solder Cup |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | 9 | Shell Material | Zinc Alloy |
| Shell Finish | Nickel | Series | HR25 |
| Packaging | Bulk | Other Names | *HR25-9TJ-12P(72) HR1453 HR259TJ12P72 |
| Orientation | Keyed | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 12 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyphenylene Sulfide (PPS) |
| Ingress Protection | - | Features | Backshell, Clamp, Strain Relief |
| Fastening Type | Threaded | Detailed Description | 12 Position Circular Connector Jack, Male Pins Solder Cup Gold |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Mating | Gold |
| Connector Type | Jack, Male Pins | Color | Black, Silver |
| Cable Opening | - | Backshell Material, Plating | Brass, Nickel |
| Applications | Industrial |
