Hirose

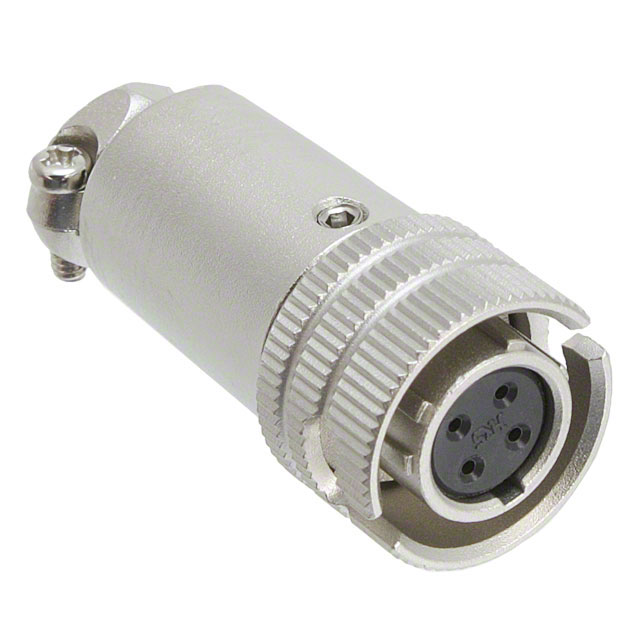

| Part Number | HR11-9BP-4S(73) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG FMALE 4POS SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5465 pcs | Data sheet | HR11-9BP-4S(73).pdf |
| Voltage Rating | 100VAC, 140VDC | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 9 | Shell Material | Zinc Alloy |
| Shell Finish | Nickel | Series | HR11 |
| Packaging | Bulk | Other Names | H12175 HR11-9BP-4S(73)-ND HR119BP4S73 Q3768283A |
| Orientation | Keyed | Operating Temperature | -10°C ~ 60°C |
| Number of Positions | 4 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyamide (PA), Nylon |
| Ingress Protection | - | Features | Backshell, Cable Clamp, Coupling Nut |
| Fastening Type | Bayonet Lock | Detailed Description | 4 Position Circular Connector Plug, Female Sockets Solder Cup Silver |
| Current Rating | 2A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) | Contact Finish - Mating | Silver |
| Connector Type | Plug, Female Sockets | Color | Silver |
| Cable Opening | 0.177" ~ 0.217" (4.50mm ~ 5.50mm) | Backshell Material, Plating | Brass, Nickel |
| Applications | Communication Systems, Instrumentation |
