Hirose

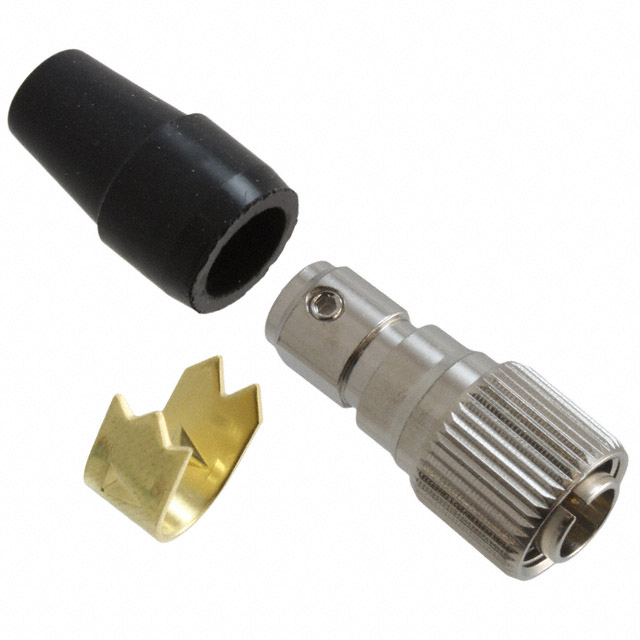

| Part Number | HR10A-7TP-6P(74) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG MALE 6POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5626 pcs | Data sheet | HR10A-7TP-6P(74).pdf |
| Voltage Rating | 100VAC, 140VDC | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 7 | Shell Material | Brass |
| Shell Finish | Nickel | Series | HR10A |
| Packaging | Bulk | Other Names | *HR10A-7TP-6P(74) HR1620 |
| Orientation | Keyed | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 6 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyamide (PA), Nylon |
| Ingress Protection | - | Features | Backshell, Clamp, Coupling Nut, Strain Relief |
| Fastening Type | Threaded | Detailed Description | 6 Position Circular Connector Plug, Male Pins Solder Cup Gold |
| Current Rating | 2A | Contact Material | Brass |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Mating | Gold |
| Connector Type | Plug, Male Pins | Color | Silver |
| Cable Opening | - | Backshell Material, Plating | Brass, Nickel |
| Applications | - |
