Hirose

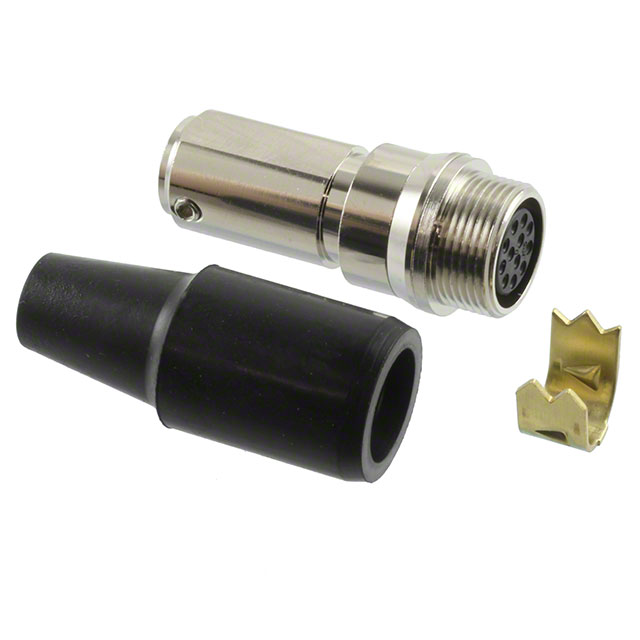

| Part Number | HR10A-10WTJ-12S(73) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN JACK FMALE 12POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3738 pcs | Data sheet | HR10A-10WTJ-12S(73).pdf |
| Voltage Rating | 100VAC, 140VDC | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 10 | Shell Material | Brass |
| Shell Finish | Nickel | Series | HR10A |
| Packaging | Tray | Other Names | 110-1103-4-73 H124023 HR10A-10WTJ-12S(73)-ND |
| Orientation | Keyed | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 12 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyamide (PA), Nylon |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | Backshell, Clamp, Strain Relief |
| Fastening Type | Threaded | Detailed Description | 12 Position Circular Connector Jack, Female Sockets Solder Cup Silver |
| Current Rating | 2A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) | Contact Finish - Mating | Silver |
| Connector Type | Jack, Female Sockets | Color | Silver |
| Cable Opening | - | Backshell Material, Plating | Brass, Nickel |
| Applications | - |
