Hirose

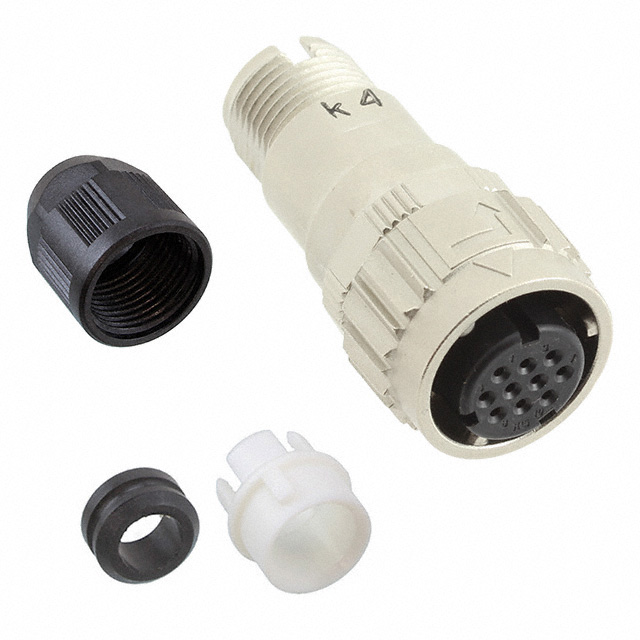

| Part Number | HR08D-12WPA-10S | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG FMALE 10POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3911 pcs | Data sheet | HR08D-12WPA-10S.pdf |
| Voltage Rating | 200VAC, 250VDC | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 12 | Shell Material | Zinc Alloy |
| Shell Finish | Nickel | Series | HR08D |
| Packaging | Bulk | Other Names | H122349 |
| Orientation | Keyed | Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 10 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyphenylene Sulfide (PPS) | Ingress Protection | IP67/68 - Dust Tight, Waterproof |
| Features | Backshell, Coupling Nut | Fastening Type | Push-Twist |
| Detailed Description | 10 Position Circular Connector Plug, Female Sockets Solder Cup Gold | Current Rating | 3A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Mating | Gold | Connector Type | Plug, Female Sockets |
| Color | Black, Silver | Cable Opening | 0.224" ~ 0.256" (5.70mm ~ 6.50mm) |
| Backshell Material, Plating | Aluminum Alloy, Nickel | Applications | Industrial |
