Hirose

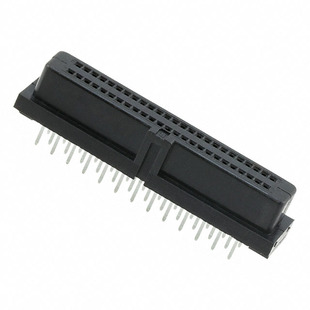

| Part Number | HIF6A-50DA-1.27DSA | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 50-POS SOCKET STRAIG | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3097 pcs | Data sheet | HIF6A-50DA-1.27DSA.pdf |
| Voltage Rating | 125VAC | Termination | Solder |
| Style | Board to Board or Cable | Series | HIF6 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Bulk | Other Names | HIF6A-50DA1.27DSA Q2367887 Q682277 |
| Operating Temperature | -55°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 50 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 14.8mm |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.346" (8.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Polarizing Key |
| Fastening Type | Push-Pull | Detailed Description | 50 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold |
| Current Rating | 0.5A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose |
