Hirose

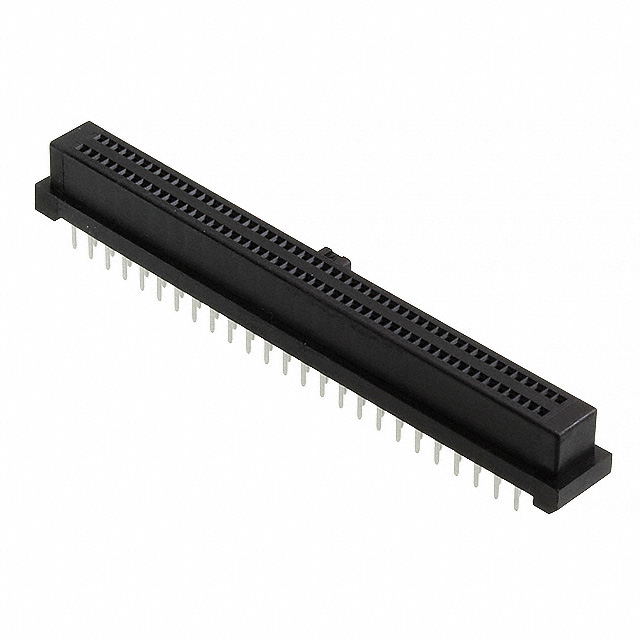

| Part Number | HIF6A-100DA-1.27DSA(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HOUSING 100POS 1.27MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10762 pcs | Data sheet | HIF6A-100DA-1.27DSA(71).pdf |
| Voltage Rating | 125VAC | Termination | Solder |
| Style | Board to Board or Cable | Series | HIF6 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Bulk | Other Names | 631-0111-9-71 H123952 HIF6A-100DA-1.27DSA(71)-ND |
| Operating Temperature | -55°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 100 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 14.8mm |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.346" (8.80mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Polarizing Key | Fastening Type | Push-Pull |
| Detailed Description | 100 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold | Current Rating | 0.5A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose |
