HIF6-80PA-1.27DSA(71)

Hirose

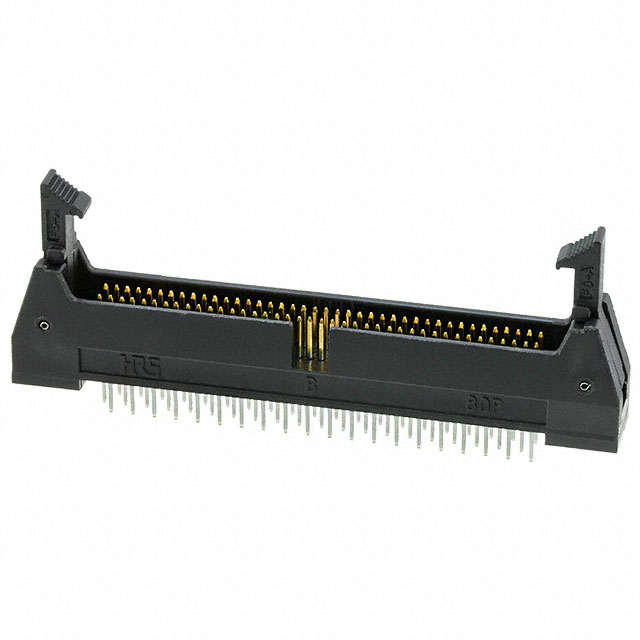

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HIF6-80PA-1.27DSA(71)
Manufacturer/Brand:	Hirose
Product description	CONN HDR 80POS 1.27MM
Datasheets:	HIF6-80PA-1.27DSA(71).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12066 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12066 pcs

Reference Price (In US Dollars)

1 pcs: $2.496

80 pcs: $2.081

160 pcs: $1.977

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.496

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HIF6-80PA-1.27DSA(71)

Part Number	HIF6-80PA-1.27DSA(71)	Manufacturer	Hirose
Description	CONN HDR 80POS 1.27MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12066 pcs	Data sheet	HIF6-80PA-1.27DSA(71).pdf
Voltage Rating	300V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	HIF6	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Bulk
Overall Contact Length	0.563" (14.30mm)	Other Names	630-0110-0-71 H123951 HIF6-80PA-1.27DSA(71)-ND
Operating Temperature	-55°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	80
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.606" (15.39mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot, Mounting Flange	Fastening Type	Latch Lock/Eject Hooks
Detailed Description	Connector Header Through Hole 80 position 0.050" (1.27mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.110" (2.79mm)
Contact Length - Mating	0.217" (5.50mm)	Contact Finish Thickness - Post	78.7µin (2.00µm)
Contact Finish Thickness - Mating	8.00µin (0.203µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
