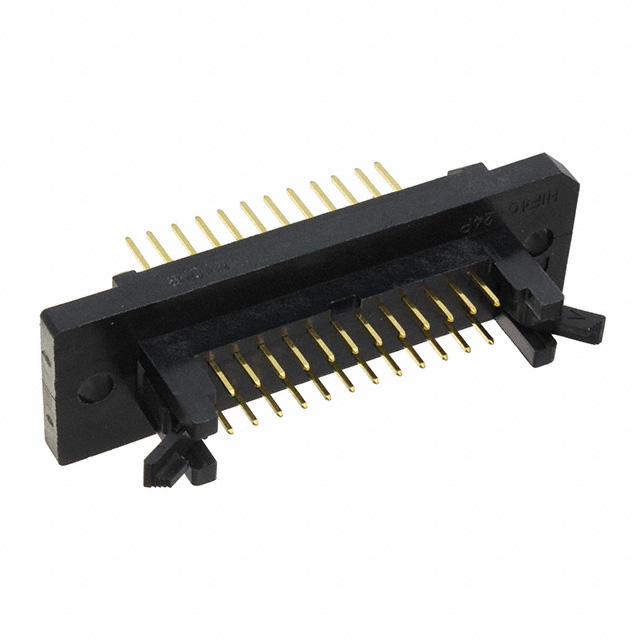

HIF4C-24P-3.18W

Hirose

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HIF4C-24P-3.18W
Manufacturer/Brand:	Hirose
Product description	CONN HDR 24POS 3.18MM
Datasheets:	HIF4C-24P-3.18W.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5833 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5833 pcs

Reference Price (In US Dollars)

1 pcs: $5.697

10 pcs: $5.18

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.697

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HIF4C-24P-3.18W

Part Number	HIF4C-24P-3.18W	Manufacturer	Hirose
Description	CONN HDR 24POS 3.18MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5833 pcs	Data sheet	HIF4C-24P-3.18W.pdf
Voltage Rating	300V	Termination	Wire Wrap
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	HIF4	Row Spacing - Mating	0.250" (6.35mm)
Pitch - Mating	0.125" (3.18mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	563-0036-1-00 H126231 HIF4C-24P-3.18W-ND
Operating Temperature	-55°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	24
Mounting Type	Panel Mount, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	-
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot, Mounting Flange	Fastening Type	Latch Lock/Eject Hooks
Detailed Description	Connector Header Panel Mount, Through Hole, Right Angle 24 position 0.125" (3.18mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	0.220" (5.59mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	-
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
