HIF3BA-30PA-2.54WB(71)

Hirose

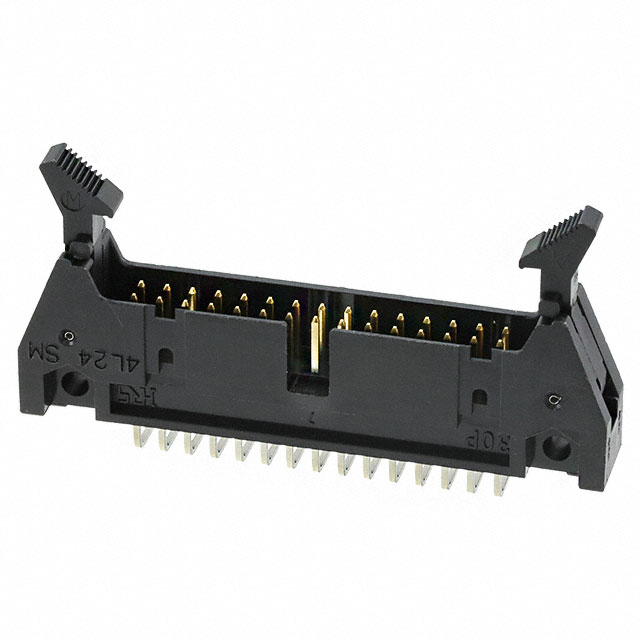

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HIF3BA-30PA-2.54WB(71)
Manufacturer/Brand:	Hirose
Product description	CONN HDR 30POS 2.54MM
Datasheets:	HIF3BA-30PA-2.54WB(71).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11140 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11140 pcs

Reference Price (In US Dollars)

1 pcs: $2.93

20 pcs: $2.808

100 pcs: $2.32

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.93

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HIF3BA-30PA-2.54WB(71)

Part Number	HIF3BA-30PA-2.54WB(71)	Manufacturer	Hirose
Description	CONN HDR 30POS 2.54MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11140 pcs	Data sheet	HIF3BA-30PA-2.54WB(71).pdf
Voltage Rating	200V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	HIF3B	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	610-1508-7-71 H123735 HIF3BA-30PA-2.54WB(71)-ND
Operating Temperature	-55°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	30
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.335" (8.51mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot, Mounting Flange	Fastening Type	Latch Lock/Eject Hooks
Detailed Description	Connector Header Through Hole, Right Angle 30 position 0.100" (2.54mm)	Current Rating	1A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.118" (3.00mm)
Contact Length - Mating	0.236" (6.00mm)	Contact Finish Thickness - Post	78.7µin (2.00µm)
Contact Finish Thickness - Mating	8.00µin (0.203µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
