HDEB-9PF(05)

Hirose

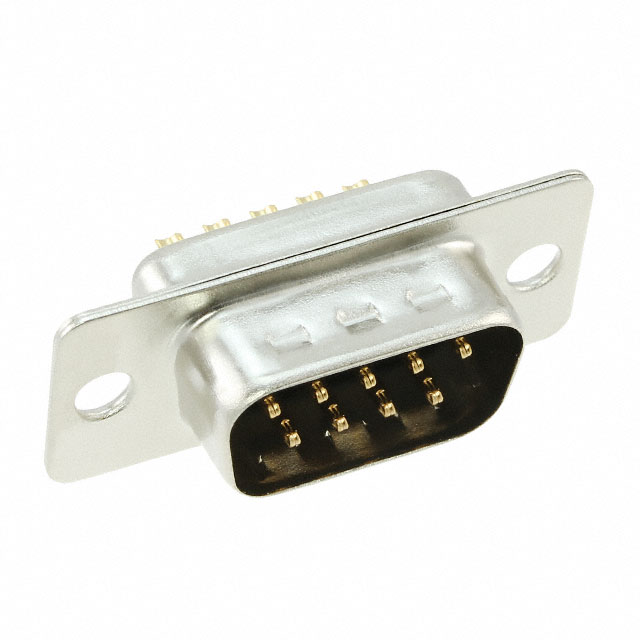

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HDEB-9PF(05)
Manufacturer/Brand:	Hirose
Product description	CONN D-SUB PLUG 9POS PNL MNT
Datasheets:	HDEB-9PF(05).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17822 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 17822 pcs

Reference Price (In US Dollars)

1 pcs: $1.763

10 pcs: $1.691

30 pcs: $1.55

50 pcs: $1.479

100 pcs: $1.409

250 pcs: $1.233

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.763

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HDEB-9PF(05)

Part Number	HDEB-9PF(05)	Manufacturer	Hirose
Description	CONN D-SUB PLUG 9POS PNL MNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17822 pcs	Data sheet	HDEB-9PF(05).pdf
Wire Gauge	-	Voltage Rating	400V
Termination	Solder Cup	Shell Size, Connector Layout	1 (DE, E)
Shell Material, Finish	Steel, Nickel Plated	Series	HD
Packaging	Tray	Other Names	H122691
Operating Temperature	-40°C ~ 85°C	Number of Rows	2
Number of Positions	9	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)	Features	Grounding Indents
Detailed Description	9 Position D-Sub Plug, Male Pins Connector	Current Rating	3A
Contact Type	Signal	Contact Material	Copper Alloy
Contact Form	Stamped	Contact Finish Thickness	-
Contact Finish	Gold	Connector Type	Plug, Male Pins
Connector Style	D-Sub	Color	Black
Backset Spacing	-
