Hirose
| Part Number | H2.4-LR-SR2(11) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN 2.4MM RCPT STR 50OHM EDGEMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1536 pcs | Data sheet | H2.4-LR-SR2(11).pdf |
| Shield Termination | Screw | Series | H2.4 |
| Packaging | Bulk | Other Names | H125501 |
| Operating Temperature | -55°C ~ 105°C | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 5 pcs - 1 Connector, 2 Screws, 2 Spring Washers | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 50GHz |
| Features | Mounting Hardware | Fastening Type | Threaded |

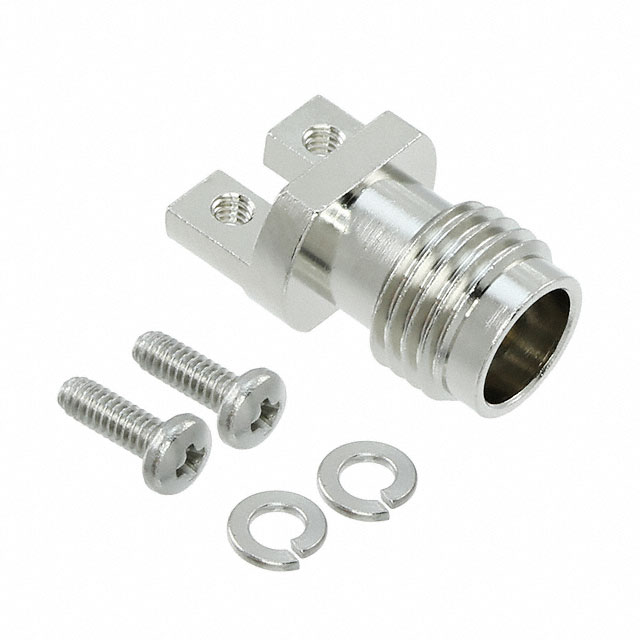

| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | 2.4mm (APC-2.4, OS-50) Connector Receptacle, Female Socket 50 Ohm Board Edge, End Launch Compression |
| Contact Termination | Compression | Connector Type | Receptacle, Female Socket |
| Connector Style | 2.4mm (APC-2.4, OS-50) | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
