Hirose
| Part Number | H/MS3108B18-10S(73) | Manufacturer | Hirose |
|---|---|---|---|

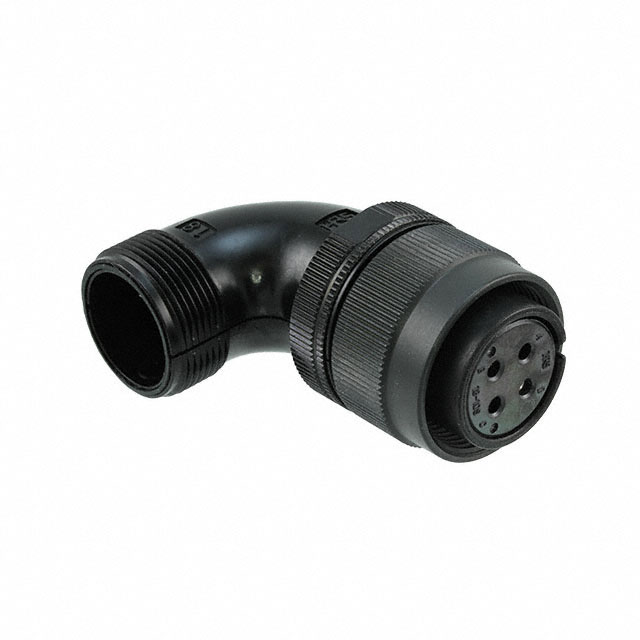

| Description | CONN PLUG FMALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2070 pcs | Data sheet | |
| Voltage Rating | 500VAC, 700VDC | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 18-10 | Shell Material | Aluminum Alloy |
| Shell Finish | Black Chromate | Series | H/MS |
| Packaging | Bulk | Other Names | H/MS3108B18-10S(73)-ND H124768 Q4786029 T1003761 |
| Orientation | N (Normal) | Operating Temperature | -40°C ~ 125°C |
| Number of Positions | 4 | Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyphenylene Sulfide (PPS) | Ingress Protection | IP67/68 - Dust Tight, Waterproof |
| Features | Backshell, Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 4 Position Circular Connector Plug, Female Sockets Solder Cup Silver | Current Rating | 23A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness - Mating | 157.5µin (4.00µm) |
| Contact Finish - Mating | Silver | Connector Type | Plug, Female Sockets |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | Zinc Alloy, Black Chromate | Applications | - |
