Hirose

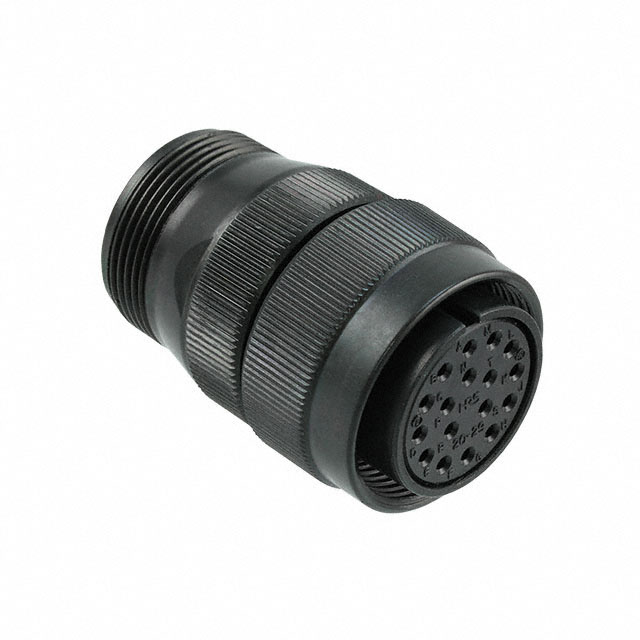

| Part Number | H/MS3106A20-29S(73) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG FMALE 17POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2344 pcs | Data sheet | |
| Voltage Rating | 500VAC, 700VDC | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 20-29 | Shell Material | Aluminum Alloy |
| Shell Finish | Black Zinc | Series | H/MS |
| Packaging | Bulk | Other Names | H/MS3106A20-29S(73)-ND H124752 Q5008055 |
| Orientation | N (Normal) | Operating Temperature | -40°C ~ 125°C |
| Number of Positions | 17 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polybutylene Terephthalate (PBT) |
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Features | Backshell, Coupling Nut |
| Fastening Type | Threaded | Detailed Description | 17 Position Circular Connector Plug, Female Sockets Solder Cup Silver |
| Current Rating | 13A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) | Contact Finish - Mating | Silver |
| Connector Type | Plug, Female Sockets | Color | Black |
| Cable Opening | 1.110" (28.20mm) | Backshell Material, Plating | Aluminum Alloy, Zinc |
| Applications | - |
